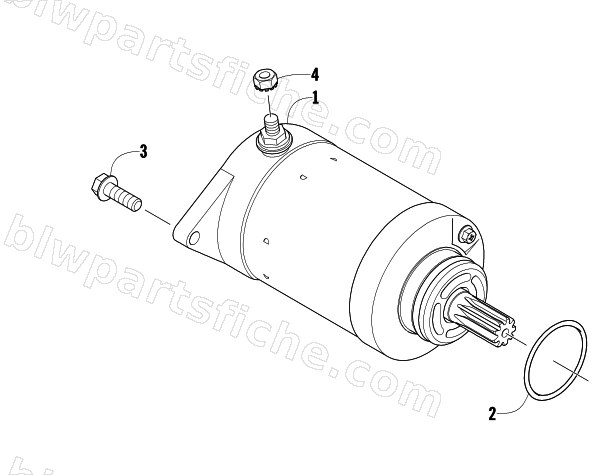

2010 Arctic Cat 366 4X4 — STARTER MOTOR ASSEMBLY
2010 366 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0837-009 | KIT,STARTER REPLACEMENT(366) | 1 | $429.95 | |
| 2 | 3304-104 | O-RING 24.4*3.1 | 1 | $1.95 | |
| 3 | 3305-946 | BOLT FLANGE SH 6*28 | 1 | $1.50 | |
| 4 | 3304-011 | NUT WASH 6MM | 1 | $0.81 |
