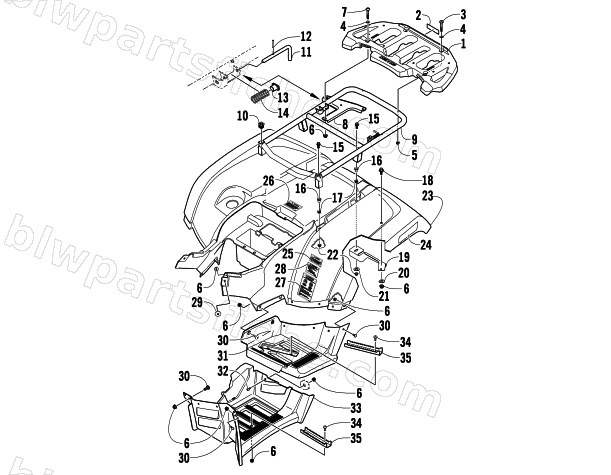

REAR RACK, BODY PANEL, AND FOOTWELL ASSEMBLIES
2010 400 TRV
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-339 | RACK,REAR-TRV ASSY (PLAS) | 1 | $114.95 | |
| 2 | 1411-201 | DECAL,WARNING-RACK(50 LB.) | 1 | $6.47 | |
| 3 | 8410-640 | SCREW,CAP-HFH M6X1.0X40 CL8.8 RIE BLK | 1 | $2.47 | |
| 4 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 5 | 0423-891 | NUT,HEX DOMED-SELF LOCKING-M6X1.0 | 1 | $1.23 | |
| 6 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 7 | 8410-645 | SCREW,CAP-HFH M6X1.0X45 CL8.8 RIE BLK | 1 | $1.64 | |
| 8 | 2506-926 | BRACKET,FLAG-SAFETY-PAINTED | 1 | $45.95 | |
| 9 | 2516-169 | RACK,REAR FRAME-ASSY | 1 | $272.95 | |
| 10 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 11 | 0541-504 | PIN,MRP-ASSY | 1 | $20.63 | |
| 12 | 0423-635 | PIN,ROLL-2.5MM | 1 | $1.37 | |
| 13 | 0423-677 | COLLAR,SEAT LATCH | 1 | $2.06 | |
| 14 | 0423-636 | SPRING,MRP LATCH | 1 | $3.57 | |
| 15 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 16 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 17 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 18 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 19 | 2506-092 | BRACKET,REAR FENDER SUPPORT-RH-PAINTED | 1 | $26.95 | |
| 19 | 2506-093 | BRACKET,REAR FENDER SUPPORT-LH-PAINTED | 1 | $26.95 | |
| 20 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 21 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 22 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 23 | 2516-218 | FENDER,ASSEMBLY-REAR | 1 | $559.95 | |
| 24 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 24 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 25 | 1411-269 | DECAL,WARNING PASSENGER TRV | 1 | $24.77 | |
| 26 | 1411-251 | DECAL,WARNING SEAT-PASSENGER | 1 | $12.35 | |
| 27 | 1411-956 | DECAL,WARNING-PASSENGER | 1 | $14.95 | |
| 28 | 2411-138 | DECAL,WARNING-TIRE PRESSURE TRV/TBX | 1 | $10.97 | |
| 29 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 30 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 31 | 2406-042 | FOOTWELL,REAR-RH | 1 | $105.95 | |
| 31 | 2406-043 | FOOTWELL,REAR-LH | 1 | $105.95 | |
| 32 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 33 | 1506-813 | FOOTWELL,AUTO-ROUTED-RH | 1 | $105.95 | |
| 33 | 2406-471 | R/B 8506-667 | 1 | $114.95 | |
| 34 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 35 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 |
