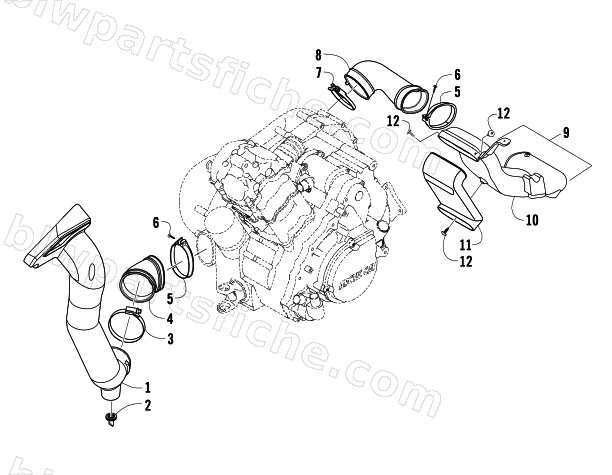

2010 Arctic Cat 550 H1 EFI 4X4 AUTOMATIC — CASE/BELT COOLING ASSEMBLY
2010 550 H1 EFI 4X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-115 | DUCT,COOLING-BELT | 1 | $58.95 | |
| 2 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 3 | 0423-057 | CLAMP,HOSE-WORM (NORMA 70-90X9mm) | 1 | $4.40 | |
| 4 | 0413-160 | BOOT,COOLING-BELT | 1 | $30.95 | |
| 5 | 0423-550 | CLAMP,PLASTIC-SCREW-OVAL(9x64x13) | 1 | $2.75 | |
| 6 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 7 | 0423-730 | CLAMP,SCREW-OVAL | 1 | $20.63 | |
| 8 | 0413-206 | BOOT,COOLING BELT | 1 | $30.95 | |
| 9 | 0470-824 | DUCT,BELT COOLING-AIR OUT | 1 | $54.95 | |
| 10 | 0470-825 | DUCT,AIR OUT-PRIMARY | 1 | $50.95 | |
| 11 | 0470-778 | DUCT,AIR OUT-SECONDARY | 1 | $50.95 | |
| 12 | 0623-784 | R/B 2623-163 | 1 | $0.35 |
