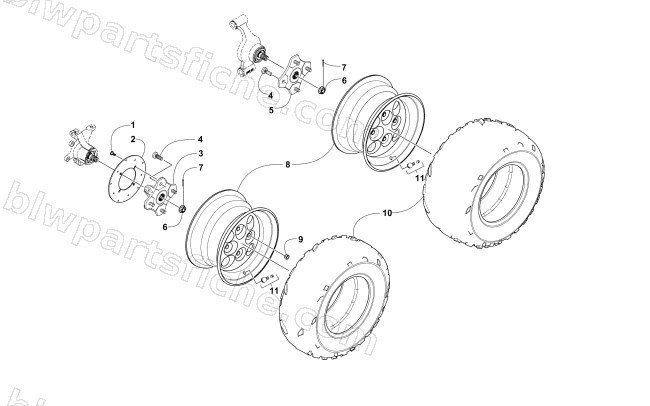

WHEEL AND TIRE ASSEMBLY
2010 550 TRV
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-164 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 3 | 1502-462 | HUB - ASSEMBLY (W/DISC PEARCH) | 1 | $177.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 1502-464 | HUB,ASSEMBLY (W/O DISC PEARCH) | 1 | $129.95 | |
| 6 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 7 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 8 | 1402-778 | WHEEL-GRAY-12 X 6.0 | 1 | $114.95 | |
| 8 | 1402-779 | WHEEL-GRAY-12 X 7.5 | 1 | $108.95 | |
| 8 | 1402-776 | WHEEL-PLATINUM-12 X 6.0 | 1 | $114.95 | |
| 8 | 1402-777 | WHEEL-PLATINUM-12 X 7.5 | 1 | $114.95 | |
| 9 | 0423-408 | NUT,LUG-M10 | 1 | $1.37 | |
| 10 | 1402-658 | TIRE,DUNLOP-AT25X8-12 QUADMAX | 1 | $139.95 | |
| 10 | 1402-659 | TIRE,DUNLOP-AT25X10-12 QUADMAX | 1 | $130.59 | |
| 11 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 |
