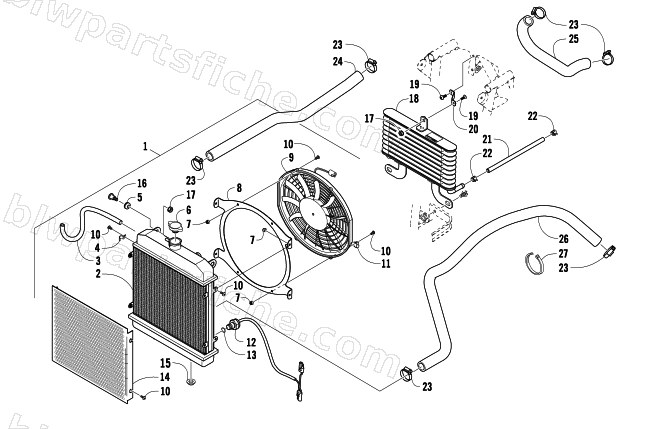

COOLING ASSEMBLY
2010 650 4X4 AUTOMATIC MUD PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0513-039 | RADIATOR,ASSY (650 MP) | 1 | $668.95 | |
| 2 | 0413-205 | ELEMENT,RADIATOR | 1 | $445.95 | |
| 3 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 3 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 4 | 0423-351 | CLIP, HOSE | 1 | $4.13 | |
| 5 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 6 | 0413-255 | CAP,RADIATOR | 1 | $53.95 | |
| 7 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 8 | 0413-240 | BRACKET,FAN | 1 | $69.95 | |
| 9 | 0413-123 | FAN,RADIATOR | 1 | $224.95 | |
| 10 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 11 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 12 | 0413-045 | SWITCH, SENSOR-TEMP | 1 | $66.95 | |
| 13 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 14 | 0413-007 | SCREEN,RADIATOR | 1 | $85.95 | |
| 15 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 16 | 0423-484 | BOLT,SHOULDER-9.6X9.55XM6 BLK | 1 | $2.69 | |
| 17 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 18 | 0413-211 | COOLER,OIL | 1 | $357.95 | |
| 19 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 20 | 0513-022 | BRKT,MTG UPPER-OIL COOLER-PTD | 1 | $10.97 | |
| 21 | 0410-127 | HOSE,OIL-21"(0410-014 CTL) | 1 | $37.95 | |
| 22 | 0423-632 | CLAMP,HOSE #5 MICRO-GEAR SIZE 05 | 1 | $4.82 | |
| 23 | 0423-496 | CLAMP,HOSE- WORM 19-38mmX12.7mm | 1 | $2.47 | |
| 24 | 0410-002 | HOSE,COOLANT-UPR | 1 | $49.95 | |
| 25 | 0410-022 | HOSE,COOLANT-CROSSOVER | 1 | $58.95 | |
| 26 | 0410-041 | HOSE,COOLANT-LWR | 1 | $86.95 | |
| 27 | 0623-751 | CABLE TIE,REUSABLE-('98 440 PRO) | 1 | $0.95 |
