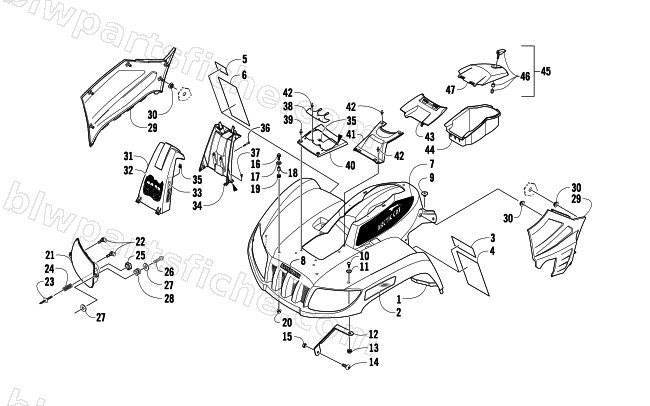

2010 Arctic Cat 650 4X4 AUTOMATIC MUD PRO — FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES
2010 650 4X4 AUTOMATIC MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-290 | FENDER,FRONT LIME-ASSY | 1 | $360.95 | |
| 2 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 2 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 3 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 4 | 2411-124 | DECAL,WARNING-GENERAL 16 | 1 | $39.95 | |
| 5 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 6 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 7 | 2411-160 | DECAL,SIDE-ARCTIC CAT-RH (650 MUD PRO) | 1 | $66.95 | |
| 7 | 2411-161 | DECAL,SIDE-ARCTIC CAT-LH (650 MUD PRO) | 1 | $66.95 | |
| 8 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 9 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 10 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 11 | 0423-091 | BUSHING,SHIFT | 1 | $3.16 | |
| 12 | 2516-380 | BRACKET,FENDER MOUNT-RH-BLACK | 1 | $33.95 | |
| 12 | 2516-381 | BRACKET,FENDER MOUNT-LH BLACK | 1 | $29.95 | |
| 13 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 14 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 17 | 0423-999 | WASHER,FLAT-M8-9.12X25.4X2.3BLK-RIE | 1 | $1.92 | |
| 18 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 19 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 20 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 21 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 21 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 22 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 23 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 24 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 25 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 26 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 27 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 28 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 29 | 2406-300 | PANEL,SIDE-RH (A-BODY) | 1 | $66.95 | |
| 29 | 2406-419 | PANEL,SIDE-LH (650H1) | 1 | $66.95 | |
| 30 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 31 | 2406-967 | CVR,SNORKEL FRNT-LIME-USE:1436-429 | 1 | $70.95 | |
| 32 | 1411-964 | DECAL,MUD PRO-700 MR(2009) | 1 | $47.95 | |
| 33 | 2411-150 | DECAL,INTAKE SNORKEL "650 MUD PRO" | 1 | $17.95 | |
| 34 | 2406-976 | CVR,SNORKEL REAR-LIME-USE:1436-429 | 1 | $53.95 | |
| 35 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 36 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 37 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 38 | 2416-100 | SHIELD,SPLASH | 1 | $10.97 | |
| 39 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 40 | 2516-170 | COVER,RADIATOR ACCESS-ROUTED | 1 | $33.95 | |
| 41 | 1406-484 | COVER,STEERING POST | 1 | $17.87 | |
| 42 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 43 | 0470-513 | COVER, STORAGE BOX | 1 | $22.01 | |
| 44 | 1406-573 | BOX,STORAGE | 1 | $26.95 | |
| 45 | 2506-234 | LID,STORAGE BOX-W/LATCH | 1 | $32.95 | |
| 46 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 47 | 0470-514 | LID, STORAGE BOX | 1 | $24.77 |
