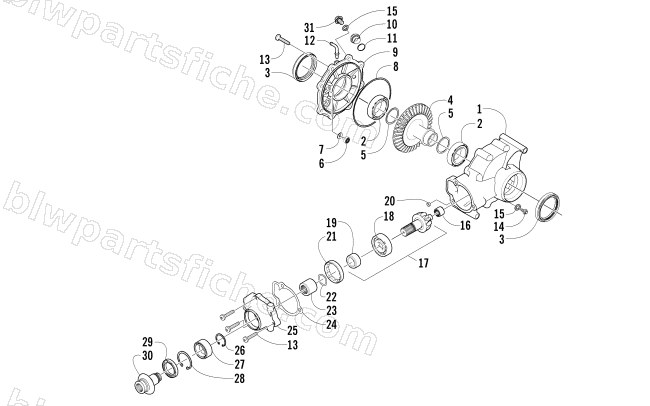

2010 Arctic Cat 650 4X4 AUTOMATIC MUD PRO — REAR DRIVE GEARCASE ASSEMBLY
2010 650 4X4 AUTOMATIC MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1502-401 | GEARCASE,REAR(3.1-H1) | 1 | $1,924.95 | |
| 1 | 1502-317 | HOUSING,GEARCASE-REAR MACH | 1 | $260.95 | |
| 2 | 0402-393 | BEARING,BALL-SR(6008 Z C-O) | 1 | $17.87 | |
| 3 | 2402-150 | SEAL,GEARCASE-HR | 1 | $23.39 | |
| 4 | 1402-033 | GEAR, REAR (34 TOOTH) | 1 | $365.95 | |
| 5 | 0402-405 | SHIM,41X49X1.3 | 1 | $10.97 | |
| 5 | 0402-406 | SHIM,41X49X1.4 | 1 | $10.97 | |
| 5 | 0402-407 | SHIM,41X49X1.5 | 1 | $10.97 | |
| 5 | 0402-408 | SHIM,41X49X1.6 | 1 | $12.35 | |
| 5 | 0402-409 | SHIM,41X49X1.7 | 1 | $10.97 | |
| 6 | 0402-326 | BUTTON,THRUST | 1 | $6.34 | |
| 7 | 0402-429 | SHIM,6.3X18X1.3 | 1 | $10.97 | |
| 7 | 0402-430 | SHIM,6.3X18X1.4 | 1 | $12.35 | |
| 7 | 0402-431 | SHIM,6.3X18X1.5 | 1 | $12.35 | |
| 7 | 0402-432 | SHIM,6.3X18X1.6 | 1 | $10.97 | |
| 7 | 0402-433 | SHIM,6.3X18X1.7 | 1 | $12.35 | |
| 8 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 9 | 1502-082 | COVER,GEARCASE-REAR MACH | 1 | $180.95 | |
| 10 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 11 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 | |
| 12 | 1402-102 | BARB, 90 DEGREE | 1 | $66.95 | |
| 13 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 14 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 15 | 0423-153 | O-RING, GEARCASE,6X1.5MM | 1 | $3.96 | |
| 16 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 17 | 0502-784 | PINION-ASSY (11T) | 1 | $212.95 | |
| 18 | 0402-327 | BEARING,BALL (6305) | 1 | $26.95 | |
| 19 | 0402-336 | COLLAR, RETAINING | 1 | $50.95 | |
| 20 | 0402-411 | PIN,DOWEL | 1 | $6.89 | |
| 21 | 0402-331 | COLLAR,LOCKING (M64-1.5 LH) | 1 | $49.95 | |
| 22 | 0402-982 | WASHER,SPRING | 1 | $8.21 | |
| 23 | 0402-981 | COLLAR,SHAFT-SPLINED | 1 | $50.95 | |
| 24 | 0402-947 | GASKET, FLANGE | 1 | $3.16 | |
| 25 | 0502-529 | HOUSING,PINION-MACH | 1 | $196.95 | |
| 26 | 0423-417 | RING,RETAINING-EXT 30 | 1 | $8.21 | |
| 27 | 1402-043 | BEARING, BALL - DOUBLE ROW | 1 | $69.95 | |
| 28 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 29 | 1402-011 | SEAL | 1 | $5.51 | |
| 30 | 1502-085 | SHAFT,INPUT-ASSEMBLY | 1 | $90.95 | |
| 31 | 1402-211 | PLUG, OIL LEVEL | 1 | $20.63 |
