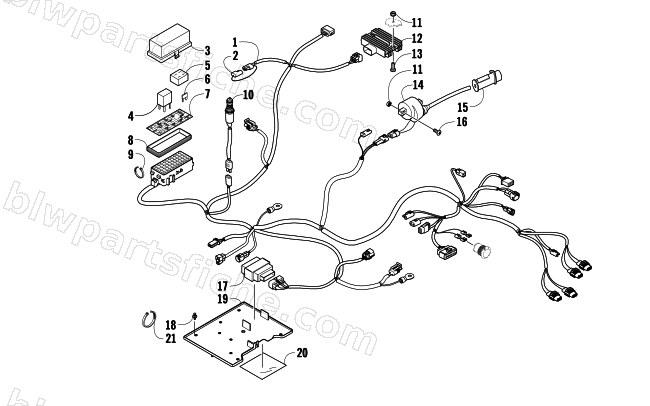

WIRING HARNESS ASSEMBLY
2010 650 4X4 AUTOMATIC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-345 | HARNESS/DIA,MAIN (2010 650-H1 FIS) | 1 | $521.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 4 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 5 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 6 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 6 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 6 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 7 | 2411-078 | DECAL,POWER DISTRIBUTION MODULE | 1 | $10.97 | |
| 8 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 11 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 12 | 0824-037 | REGULATOR,VOLTAGE (W/TACH SIGNAL) | 1 | $113.95 | |
| 13 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 14 | 0824-036 | COIL,IGNITION-ASSY | 1 | $252.95 | |
| 15 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 16 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 17 | 0824-038 | CDI UNIT,RL (07 650-H1 FIS) | 1 | $689.95 | |
| 18 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 19 | 1406-787 | TRAY,ELECTRICAL (BOOT CDI) | 1 | $26.95 | |
| 20 | 0412-291 | SHIELD,HEAT (PSA) | 1 | $9.59 | |
| 21 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
