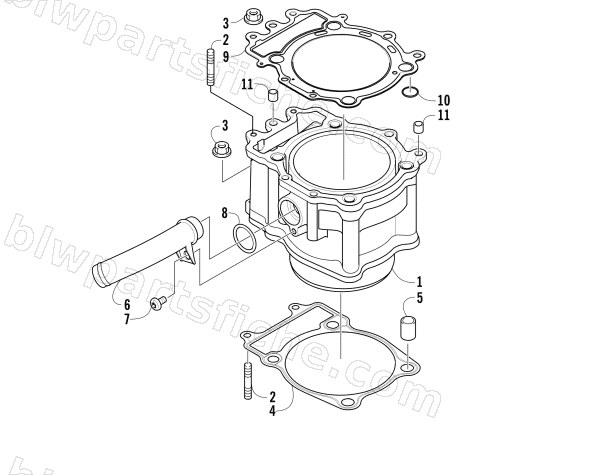

2010 Arctic Cat 700 H1 EFI 4X4 AUTOMATIC MUD PRO — CYLINDER ASSEMBLY
2010 700 H1 EFI 4X4 AUTOMATIC MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0804-060 | CYLINDER, 700H1, 11MA102 | 1 | $668.95 | |
| 2 | 0827-002 | STUD, M6 x 1 x 38 | 1 | $2.47 | |
| 3 | 8424-604 | NUT,HEX-FLG M6X1.0 CL8 RIE SIL | 1 | $0.54 | |
| 4 | 0830-111 | GASKET,BASE | 1 | $20.63 | |
| 5 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 6 | 0804-047 | FITTING,COOLANT | 1 | $58.95 | |
| 7 | 8468-612 | SCREW,MACH-TSPNH M5X0.8X20 CL8.8 BLK | 1 | $1.23 | |
| 8 | 0830-007 | O-RING, 21.9 ID X 2.7 W | 1 | $0.68 | |
| 9 | 0830-112 | GASKET,CYLINDER HEAD A700 | 1 | $86.95 | |
| 10 | 0830-113 | O-RING,CYL.HEAD-10.8X1.78 | 1 | $1.78 | |
| 11 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 |
