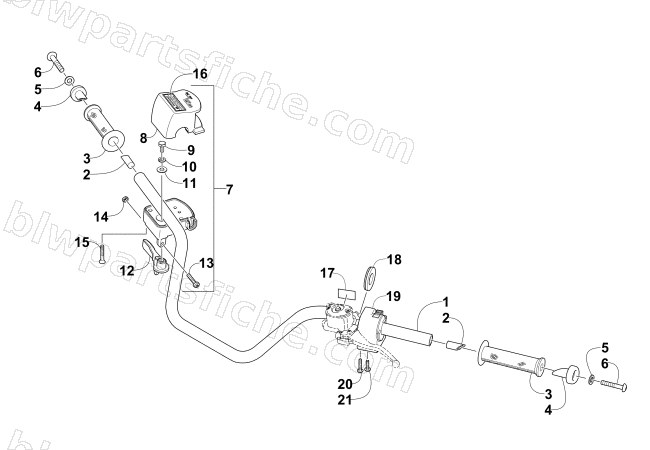

2010 Arctic Cat 700 H1 EFI 4X4 AUTOMATIC MUD PRO — HANDLEBAR ASSEMBLY
2010 700 H1 EFI 4X4 AUTOMATIC MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0505-537 | TUBE,HANDLEBAR-PAINTED | 1 | $47.95 | |
| 2 | 0405-218 | PLUG,HANDLEBAR | 1 | $20.63 | |
| 3 | 0405-147 | GRIP,HANDLEBAR (EXTERNAL) | 1 | $20.63 | |
| 4 | 0405-149 | END,HANDLE BAR | 1 | $3.16 | |
| 5 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 6 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 7 | 0509-054 | RHCA,2WD/4WD/D-L/K(010 ATV) | 1 | $203.95 | |
| 8 | 0409-141 | SWITCH,2WD/4WD WITH D-L/K (2010 FIS) | 1 | $114.95 | |
| 9 | 3007-392 | BOLT | 1 | $3.95 | |
| 10 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 11 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 12 | 0409-133 | LEVER,THROTTLE (010 FIS) | 1 | $52.95 | |
| 13 | 3423-014 | SCREW,5MM | 1 | $2.06 | |
| 14 | 3423-327 | NUT,5MM | 1 | $2.33 | |
| 15 | 3423-199 | SCREW, 5X30 | 1 | $1.78 | |
| 16 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 17 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 | |
| 18 | 3409-019 | COVER, DUST | 1 | $2.61 | |
| 19 | 0509-014 | HANDLE CONTROL,LEFT-ASSY (W/ OVERIDE) | 1 | $144.95 | |
| 20 | 0409-028 | SCREW, SWITCH CONTROL - 5X45-6ZK | 1 | $4.95 | |
| 21 | 0409-027 | SCREW, SWITCH CONTROL - 5X35-6ZK | 1 | $4.95 |
