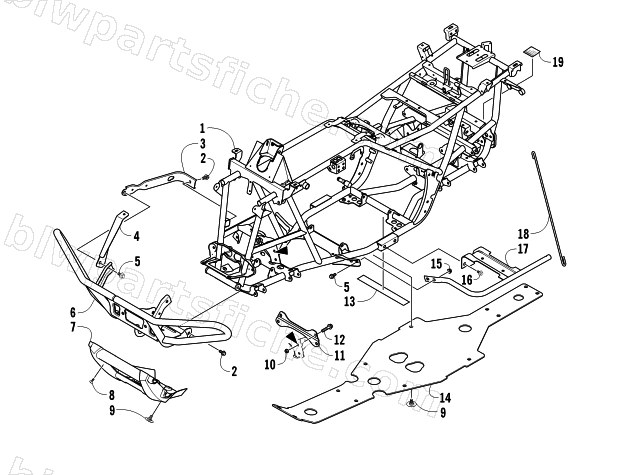

2010 Arctic Cat 700 H1 EFI 4X4 AUTOMATIC — FRAME AND RELATED PARTS
2010 700 H1 EFI 4X4 AUTOMATIC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-541 | FRAME,MAIN-BLACK(450/650/700) | 1 | $1,639.95 | |
| 2 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 3 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 4 | 1506-562 | BRACKET,BUMPER-RH-BLACK | 1 | $30.95 | |
| 4 | 1506-563 | BRACKET,BUMPER-LH-BLACK | 1 | $30.95 | |
| 5 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 6 | 1506-855 | BUMPER,FRONT-BLACK (A-BODY) | 1 | $208.95 | |
| 6 | 2506-639 | BUMPER,LE-BLACK (A BODY) | 1 | $341.95 | |
| 7 | 1406-360 | FASCIA,BUMPER-FRONT (BLACK) | 1 | $54.95 | |
| 7 | 0411-501 | DECAL,"ARCTIC CAT"-WHT | 1 | $3.30 | |
| 8 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 8 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 9 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 9 | 2506-641 | STRAP,BUMPER SUPPORT-BLACK | 1 | $12.35 | |
| 10 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 10 | 8424-805 | NUT,HEX FLG-M8X1.25 CL8 RIE BLK | 1 | $0.95 | |
| 11 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 12 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 13 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 14 | 1406-030 | PANEL,BELLY | 1 | $187.95 | |
| 15 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 16 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 17 | 1506-380 | FOOTREST,RH-PTD BLACK | 1 | $79.95 | |
| 17 | 1506-379 | FOOTREST,LH-PTD BLACK | 1 | $79.95 | |
| 18 | 2506-423 | ROD,SUPPORT-BLACK | 1 | $10.97 | |
| 19 | 1411-077 | R/B 4411-550 | 1 | $3.95 | |
| 21 | 1506-615 | BUMPER,REAR-ASSY (LE BLACK) | 1 | $328.95 | |
| 22 | 0406-130 | CAP,BUMPER(RDR17-1420) | 1 | $5.51 |
