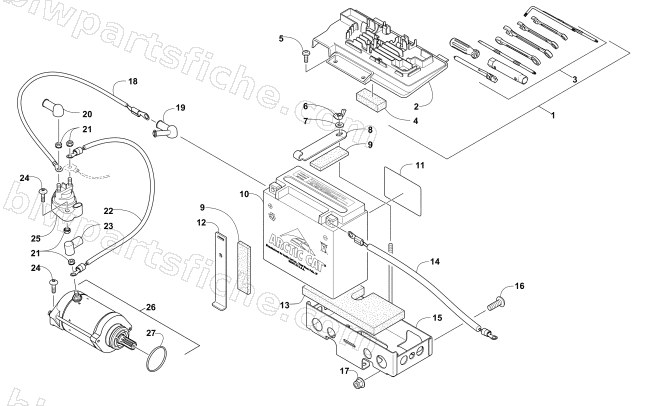

2010 Arctic Cat 700 H1 EFI 4X4 TBX — BATTERY AND STARTER ASSEMBLY
2010 700 H1 EFI 4X4 TBX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5992-008 | TRAY,TOOL-ASSY (TBX) | 1 | $104.95 | |
| 2 | 2506-832 | COVER,BATTERY-ROUTED | 1 | $47.95 | |
| 3 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 4 | 0417-016 | PAD,BATTERY-0.75" | 1 | $2.33 | |
| 5 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 6 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 7 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 8 | 0645-243 | STRAP, BATTERY HOLDOWN-TOP | 1 | $16.49 | |
| 9 | 0406-288 | PAD,BATTERY-TOP FR | 1 | $6.34 | |
| 10 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 11 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 12 | 0645-311 | STRAP,BATTERY HOLDOWN-SIDE | 1 | $32.95 | |
| 13 | 0406-227 | PAD,BATTERY-LOWER | 1 | $3.57 | |
| 14 | 0445-084 | CABLE,BATTERY-ENGINE (44" BLK #6) | 1 | $45.95 | |
| 15 | 2516-591 | BOX,BATTERY-PTD BLACK | 1 | $85.95 | |
| 16 | 8468-820 | SCREW,MACH-TSPNH M8X1.25X20 CL8.8 BLK | 1 | $1.50 | |
| 17 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 18 | 0445-061 | CABLE,SOLENOID-STARTER (40" RED #6) | 1 | $42.95 | |
| 19 | 0445-067 | BOOT,TERMINAL-DUAL CABLE | 1 | $13.73 | |
| 20 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 21 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 22 | 0445-064 | CABLE,SOLENOID-STARTER (19" RED #6) | 1 | $30.95 | |
| 23 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 24 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 25 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 26 | 0825-024 | MOTOR,STARTER-ENGINE (PD 11.25) | 1 | $268.95 | |
| 27 | 0830-228 | O-RING,33.5MMX3MM | 1 | $5.09 |
