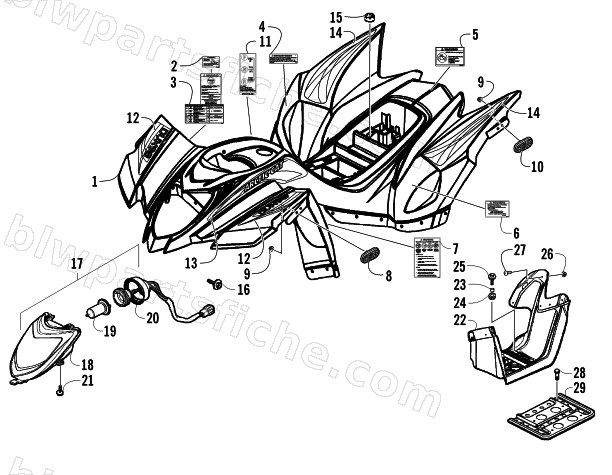

2010 Arctic Cat 90 2X4 DVX — BODY PANEL AND HEADLIGHT ASSEMBLY
2010 90 2X4 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-102 | BODY ASSY,MAIN (WHITE W/DECALS) | 1 | $421.95 | |
| 2 | 0411-836 | DECAL,WARNING HILL (MINI) | 1 | $82.95 | |
| 3 | 2411-136 | DECAL,WARNING-RVS/PRE-RIDE/Y12 | 1 | $17.87 | |
| 4 | 1411-577 | DECAL,WARNING-OFF ROAD ONLY | 1 | $50.95 | |
| 5 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 6 | 1411-938 | DECAL,WARNING-TIRE/LOAD (MINI) | 1 | $12.35 | |
| 7 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 8 | 3313-359 | REFLECTOR,FRONT (OVAL) | 1 | $13.73 | |
| 9 | 3304-774 | NUT FLANGE 5MM(G) | 1 | $0.81 | |
| 10 | 3313-360 | REFLECTOR,REAR (OVAL) | 1 | $13.73 | |
| 11 | 2411-052 | DECAL,SHIFT | 1 | $17.87 | |
| 12 | 1411-968 | DECAL,FR FENDER-RH (DVX 90) | 1 | $58.95 | |
| 12 | 1411-969 | DECAL,FR FENDER-LH (DVX 90) | 1 | $58.95 | |
| 13 | 1411-966 | DECAL,TANK-RH (DVX 90) | 1 | $41.95 | |
| 13 | 1411-967 | DECAL,TANK-LH (DVX 90) | 1 | $148.95 | |
| 14 | 1411-970 | DECAL,RR FENDER-RH (DVX) | 1 | $58.95 | |
| 14 | 1411-971 | DECAL,RR FENDER-LH (DVX) | 1 | $58.95 | |
| 15 | 3303-232 | RUBBER REAR FENDER | 1 | $1.92 | |
| 16 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 17 | 3304-280 | LIGHT ASSY R HEAD | 1 | $203.95 | |
| 18 | 3304-281 | UNIT HEAD LIGHT | 1 | $180.95 | |
| 19 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 20 | 3304-282 | SOCKET COMP | 1 | $37.95 | |
| 21 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 22 | 3306-144 | MUDGUARD ASSY R FLOOR | 1 | $82.95 | |
| 22 | 3306-145 | MUDGUARD ASSY L FLOOR | 1 | $82.95 | |
| 23 | 3303-233 | COLLAR FLOOR | 1 | $2.33 | |
| 24 | 3303-227 | RUBBER WIND SCREEN | 1 | $1.92 | |
| 25 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 26 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 27 | 3305-703 | SCREW SPECIAL 6*20 | 1 | $1.78 | |
| 28 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 29 | 3304-494 | FOOTREST-RH | 1 | $37.95 | |
| 29 | 3304-495 | FOOTREST-LH | 1 | $37.95 |
