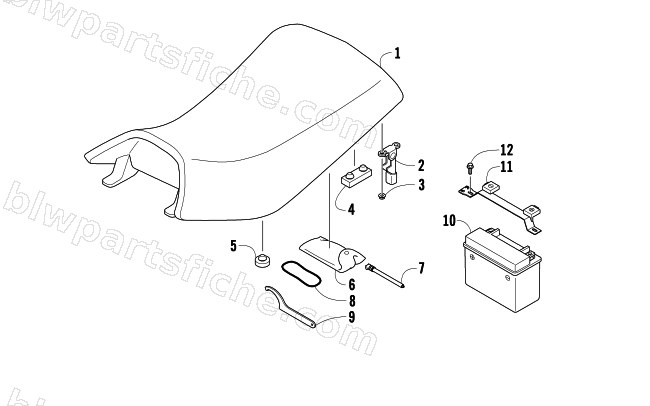

2010 Arctic Cat 90 2X4 UTILITY — SEAT, BATTERY, AND TOOL KIT ASSEMBLIES
2010 90 2X4 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-497 | SEAT ASSY | 1 | $292.95 | |
| 2 | 3304-392 | HOOK ASSY SEAT LOCK | 1 | $26.95 | |
| 3 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 5 | 3304-568 | RUBBER SEAT CUSHION | 1 | $1.92 | |
| 6 | 3303-578 | TOOL SET | 1 | $47.95 | |
| 8 | 3303-242 | BAND TOOL SET | 1 | $1.64 | |
| 9 | 1441-797 | WRENCH,SPANNER | 1 | $0.00 | |
| 10 | 3303-131 | BATTERY YTX5L-BS **(3) C.2001.02.07 | 1 | $126.95 | |
| 11 | 3303-182 | BAND BATTERY | 1 | $3.02 | |
| 12 | 3303-263 | BOLT WASH 5*12 **9000 C.97.07.26. | 1 | $0.81 |
