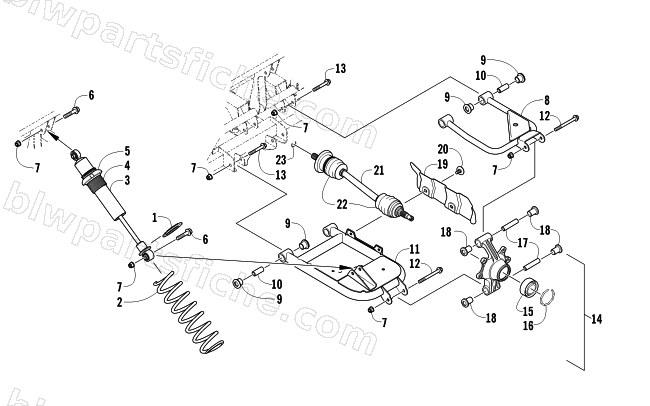

2010 Arctic Cat PROWLER 1000 XTZ 4X4 — REAR SUSPENSION ASSEMBLY

2010 PROWLER 1000 XTZ 4X4

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	0423-920	RETAINER,SPRING	1	$42.95
2	0504-612	SPRING,COIL-REAR-BLACK	1	$102.95
2	0504-629	SPRING,COIL-REAR-PTD-WHITE	1	$102.95
3	0404-182	SHOCK ABSORBER-REAR	1	$461.95
4	0423-917	TUBE,RETAINER-THREADED	1	$71.95
5	0423-919	NUT,RETAINER	1	$6.34
6	8409-060	SCREW,CAP-HFH M10X1.25X60 CL10.9 Z&Y	1	$3.71
7	8428-002	NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y	1	$5.09
8	0504-872	A-ARM,REAR-UPPER-RH-ASSY	1	$108.95
8	0504-873	A-ARM,REAR UPPER-LH - ASSY	1	$108.95
8	0504-620	A-ARM,REAR UPPER RH-PLAT-ASSY	1	$90.95
8	0504-621	A-ARM,REAR UPPER LH-PLAT-ASSY	1	$90.95
9	0403-409	BUSHING,A-ARM SUSPENSION	1	$2.47
10	0403-438	COLLAR,SUSPENSION BUSHING-A-ARM	1	$4.95
11	0504-592	A-ARM,REAR LOWER RH-BLACK-ASSY	1	$187.95
11	0504-593	A-ARM,REAR LOWER LH-BLK ASSY	1	$187.95
11	0504-624	A-ARM,REAR LOWER RH-PLAT-ASSY	1	$181.95
11	0504-625	A-ARM,REAR LOWER LH-PLAT-ASSY	1	$181.95
12	8409-000	SCREW, CAP-HFH M10-1.25 X100 Z&Y CL10.9	1	$1.37
13	8409-075	SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y	1	$1.92
14	0504-613	KNUCKLE,FORGED STEEL-REAR-ASSY	1	$299.95
15	1402-809	BEARING,WHEEL	1	$33.95
16	0423-423	RING,RETAINING (HOUSING ID:55)	1	$4.13
17	0403-437	COLLAR,SUSPENSION BUSHING-REAR K	1	$6.89
18	0403-283	BUSHING,REAR SUSPENSION	1	$2.75
19	1406-068	GUARD,BOOT-REAR-RH (BLACK)	1	$37.95
19	1406-069	GUARD,BOOT-REAR-LH (BLACK)	1	$37.95
20	0423-545	SCREW,BODY-SELF TAP #12 X 3/4 A Z&B	1	$1.09
21	1436-411	KIT,HALFSHAFT REMOVAL	1	$425.95
22	1436-228	KIT,CV BOOT REPAIR	1	$58.95
23	1402-890	CIRCLIP,25MM	1	$5.09
