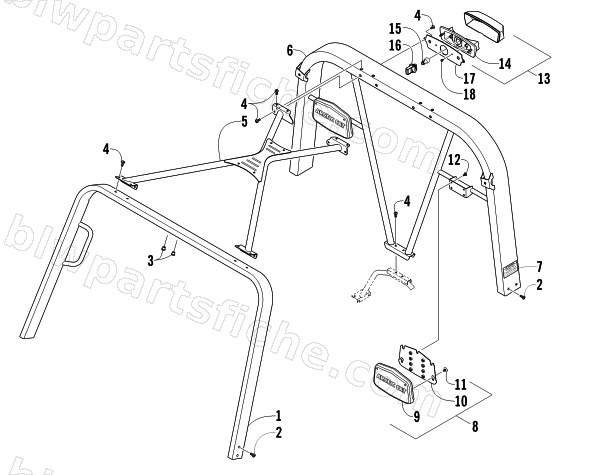

CANOPY AND TAILLIGHT ASSEMBLY
2010 PROWLER 550 XT 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-163 | TUBE,CANOPY-BLACK | 1 | $936.95 | |
| 2 | 0423-817 | SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK | 1 | $1.50 | |
| 3 | 0423-905 | PLUG,3/8"-BLACK | 1 | $1.09 | |
| 4 | 0423-910 | SCREW,TSH-M6-1.0X16-BLK W/PATCH LOCK | 1 | $1.09 | |
| 5 | 2516-304 | CANOPY SUPPORT-PTD | 1 | $1,018.95 | |
| 6 | 2516-599 | TUBE,REAR CANOPY-3PT-PTD BLACK | 1 | $1,435.95 | |
| 7 | 1411-864 | DECAL,WARNING-CANOPY | 1 | $4.95 | |
| 8 | 4406-989 | PAD,HEADREST | 1 | $26.95 | |
| 9 | 1406-884 | R/B 4406-989 | 1 | $28.95 | |
| 10 | 1506-722 | HEADREST MOUNT-PAINTED-BLACK | 1 | $89.95 | |
| 11 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 12 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 13 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 14 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 15 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 16 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 17 | 2406-069 | BRACKET,TAILLIGHT MOUNT-BLACK | 1 | $20.63 | |
| 18 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 |
