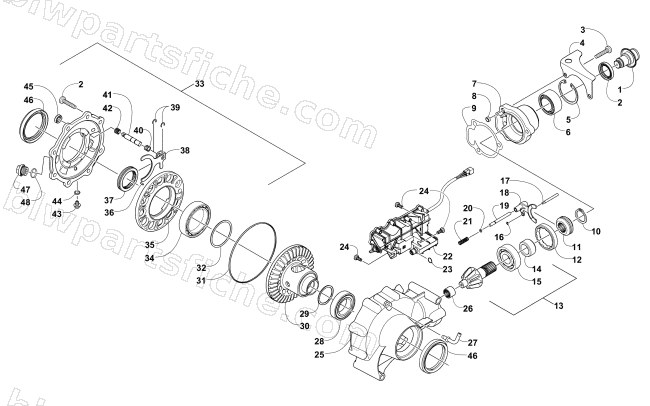

FRONT DRIVE GEARCASE ASSEMBLY
2010 PROWLER 550 XT 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1502-400 | GEARCASE,FRONT(4.0-PLR ELEC LOCK) | 1 | $2,228.95 | |
| 1 | 1502-085 | SHAFT,INPUT-ASSEMBLY | 1 | $90.95 | |
| 2 | 1402-011 | SEAL | 1 | $5.51 | |
| 3 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 4 | 1502-237 | BRACKET,ACTUATOR-WELD'T | 1 | $45.95 | |
| 5 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 6 | 1402-043 | BEARING, BALL - DOUBLE ROW | 1 | $69.95 | |
| 7 | 0502-528 | HOUSING,PINION-MACH | 1 | $180.95 | |
| 8 | 0402-411 | PIN,DOWEL | 1 | $6.89 | |
| 9 | 0402-947 | GASKET, FLANGE | 1 | $3.16 | |
| 10 | 0423-417 | RING,RETAINING-EXT 30 | 1 | $8.21 | |
| 11 | 0402-413 | COUPLER,DRIVE | 1 | $66.95 | |
| 12 | 0402-357 | COLLAR,LOCKING (M64-1.5 RH) | 1 | $50.95 | |
| 13 | 0502-649 | PINION(9T 4.0)-ASSY | 1 | $196.95 | |
| 14 | 0402-336 | COLLAR, RETAINING | 1 | $50.95 | |
| 15 | 0402-327 | BEARING,BALL (6305) | 1 | $26.95 | |
| 16 | 0423-402 | RING,RETAINING-4MM EXT. | 1 | $3.16 | |
| 17 | 0402-997 | PUSHROD,SELECTOR | 1 | $66.95 | |
| 18 | 0402-998 | FORK,SELECTOR | 1 | $82.95 | |
| 19 | 0402-417 | SHAFT,SHUTTLE | 1 | $20.63 | |
| 20 | 0423-147 | O-RING,3X 2MM | 1 | $1.50 | |
| 21 | 0402-999 | SPRING,RETURN-4WD | 1 | $1.78 | |
| 22 | 2502-194 | ACTUATOR,ELEC LOCK | 1 | $454.95 | |
| 23 | 1402-981 | O-RING,ACTUATOR-FRONT GEARCASE | 1 | $0.68 | |
| 24 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 25 | 0502-548 | HOUSING, GEARCASE - MACH | 1 | $169.95 | |
| 26 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 27 | 1402-442 | BARB, 90 DEGREE | 1 | $20.63 | |
| 28 | 0402-393 | BEARING,BALL-SR(6008 Z C-O) | 1 | $17.87 | |
| 29 | 0402-405 | SHIM,41X49X1.3 | 1 | $10.97 | |
| 29 | 0402-406 | SHIM,41X49X1.4 | 1 | $10.97 | |
| 29 | 0402-407 | SHIM,41X49X1.5 | 1 | $10.97 | |
| 29 | 0402-408 | SHIM,41X49X1.6 | 1 | $12.35 | |
| 29 | 0402-409 | SHIM,41X49X1.7 | 1 | $10.97 | |
| 30 | 1502-556 | GEAR (36T 4.0 LOCK LSD)-WELDT | 1 | $679.95 | |
| 31 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 32 | 1402-074 | SHIM, 1.3 | 1 | $30.95 | |
| 32 | 1402-075 | SHIM, 1.4 | 1 | $30.95 | |
| 32 | 1402-076 | SHIM, 1.5 | 1 | $30.95 | |
| 32 | 1402-077 | SHIM, 1.6 | 1 | $30.95 | |
| 32 | 1402-078 | SHIM, 1.7 | 1 | $30.95 | |
| 33 | 1502-238 | COVER,E-LOCKER-ASSEMBLY | 1 | $582.95 | |
| 34 | 1402-053 | BEARING, BALL (6912 C3) | 1 | $118.95 | |
| 35 | 0502-413 | FLANGE,BEARING-MACH | 1 | $102.95 | |
| 36 | 1402-079 | PIN, PARALLEL | 1 | $1.78 | |
| 37 | 1402-042 | COLLAR, SLIDING - LOCK | 1 | $100.95 | |
| 38 | 1402-054 | FORK | 1 | $69.95 | |
| 39 | 1402-058 | RING, RETAINING | 1 | $9.59 | |
| 40 | 1402-057 | SPRING | 1 | $20.63 | |
| 41 | 1402-656 | SHAFT,LOCK | 1 | $37.95 | |
| 42 | 1402-063 | SPRING | 1 | $3.02 | |
| 43 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 45 | 1402-056 | SEAL | 1 | $20.63 | |
| 46 | 2402-150 | SEAL,GEARCASE-HR | 1 | $23.39 | |
| 47 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 48 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 |
