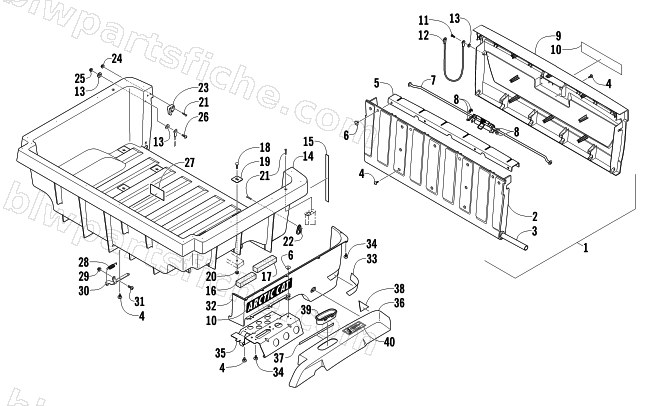

2010 Arctic Cat PROWLER 700 XTX 4X4 — CARGO BOX AND TAILGATE ASSEMBLY
2010 PROWLER 700 XTX 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-205 | TAILGATE ASSEMBLY - BLACK | 1 | $357.95 | |
| 1 | 2516-435 | TAILGATE,ASSEMBLY-ADV. TIMBER CAMO | 1 | $707.95 | |
| 2 | 2406-365 | PANEL,TAILGATE INNER | 1 | $140.95 | |
| 3 | 1406-927 | SHAFT,PIVOT-TAILGATE | 1 | $26.95 | |
| 4 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 5 | 1506-704 | BRACE,TAILGATE-BLACK | 1 | $58.95 | |
| 6 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 7 | 2506-056 | LATCH,TAILGATE-BLACK | 1 | $112.95 | |
| 8 | 1406-706 | BEARING,HANDLE | 1 | $2.06 | |
| 9 | 2406-369 | PANEL,TAILGATE OUTER BLACK | 1 | $180.95 | |
| 9 | 2516-434 | PANEL,TAILGATE-OUTER (A. T. CAMO) | 1 | $496.95 | |
| 10 | 1411-539 | DECAL,BOX-"ARCTIC CAT"(PROWLER) | 1 | $33.95 | |
| 10 | 1411-816 | DECAL,GRAPHIC STORAGE BOX-CAMO(PROWLER) | 1 | $74.95 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 0487-045 | CABLE,TAILGATE | 1 | $17.87 | |
| 13 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 2406-916 | BOX,REAR CARGO | 1 | $806.95 | |
| 15 | 0417-006 | STRIP,FOAM .125 IN | 1 | $2.06 | |
| 16 | 0417-011 | FOAM,CARGO BOX(1.625 X 2 X 6.5) | 1 | $5.78 | |
| 17 | 0417-010 | FOAM,CARGO BOX (1.75 X 2 X 8) | 1 | $6.89 | |
| 18 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 19 | 1506-933 | PLATE,RETAINING-BLACK (MATTE) | 1 | $12.35 | |
| 20 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 21 | 8474-630 | SCREW,MACH-TSFH M6X1.0X30 CL8.8 BLK | 1 | $1.23 | |
| 22 | 1506-539 | BRACKET,TAILGATE-BLACK | 1 | $20.63 | |
| 23 | 2506-664 | STRIKER,TAILGATE-RH-COATED | 1 | $17.87 | |
| 23 | 2506-665 | STRIKER,TAILGATE-LH-COATED | 1 | $17.87 | |
| 24 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 25 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 26 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 27 | 1411-119 | DECAL,WARNING-CARGO (600#) | 1 | $16.49 | |
| 28 | 2416-086 | SPRING,BOX RELEASE | 1 | $5.51 | |
| 29 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 30 | 2516-178 | BRACKET,BOX LATCH SPRING-PAINTED | 1 | $20.63 | |
| 31 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 32 | 1406-762 | PANEL,BOX-RIGHT-BLACK | 1 | $58.95 | |
| 32 | 1406-761 | PANEL,BOX-LEFT-BLACK | 1 | $58.95 | |
| 32 | 2516-436 | PANEL,BOX-RH (A. T. CAMO) | 1 | $324.95 | |
| 32 | 2516-437 | PANEL,BOX-LH (A. T. CAMO) | 1 | $324.95 | |
| 33 | 1411-128 | REFLECTOR,RH-REAR | 1 | $13.73 | |
| 33 | 1411-129 | REFLECTOR,LH-REAR | 1 | $13.73 | |
| 34 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 35 | 1506-776 | BRACKET,FENDER SUPPORT-RH BLACK | 1 | $114.95 | |
| 35 | 2506-927 | BRACKET,FENDER SUPPORT-LH-BLACK | 1 | $108.95 | |
| 36 | 2516-188 | FENDER,RR UPPER-RH-A GREEN METALLIC-ASSY | 1 | $188.95 | |
| 36 | 2516-189 | FENDER,RR UPPER-LH-A GREEN METALLIC-ASSY | 1 | $188.95 | |
| 36 | 2516-430 | FENDER,REAR UPPER-RH (A. T. CAMO)-ASSY | 1 | $232.95 | |
| 36 | 2516-431 | FENDER,REAR UPPER-LH (A. T. CAMO)-ASSY | 1 | $387.95 | |
| 36 | 2506-996 | FENDER,REAR UPPER-RH-BURNT ORANGE-ASSY | 1 | $97.95 | |
| 36 | 2506-997 | FENDER,REAR UPPER-LH-BURNT ORANGE-ASSY | 1 | $97.95 | |
| 36 | 2516-004 | FENDER,REAR UPPER-RH-GUN METAL BLUE-ASSY | 1 | $194.95 | |
| 36 | 2516-005 | FENDER,REAR UPPER-LH-GUN METAL BLUE-ASSY | 1 | $186.95 | |
| 37 | 0417-007 | STRIP,FOAM .125 IN | 1 | $9.59 | |
| 38 | 0417-008 | PAD,FOAM .125 IN | 1 | $1.23 | |
| 39 | 2516-037 | RING,TRIM-FENDER | 1 | $5.92 | |
| 40 | 1411-120 | DECAL,WARNING-PINCH POINT | 1 | $4.95 |
