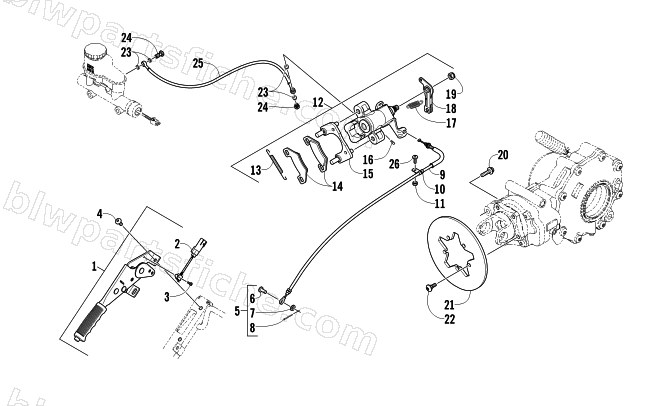

2010 Arctic Cat PROWLER 700 XTX 4X4 — REAR AND PARKING BRAKE ASSEMBLY
2010 PROWLER 700 XTX 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-497 | LEVER,PARKING BRAKE-ASSY | 1 | $283.95 | |
| 2 | 0409-131 | SWITCH,LIMIT-PARK BRAKE | 1 | $118.95 | |
| 3 | 0423-992 | SCREW,MACHINE-PB LEVER | 1 | $0.15 | |
| 4 | 8468-820 | SCREW,MACH-TSPNH M8X1.25X20 CL8.8 BLK | 1 | $1.50 | |
| 5 | 0423-894 | PIN,PARK BRAKE-ASSY | 1 | $30.95 | |
| 6 | 0423-989 | PIN,PARK BRAKE CABLE | 1 | $0.65 | |
| 7 | 0423-990 | WASHER,PARK BRAKE CABLE | 1 | $0.26 | |
| 8 | 0423-991 | COTTER PIN,PARK BRAKE CABLE | 1 | $0.68 | |
| 9 | 0487-068 | CABLE,PARKING BRAKE | 1 | $100.95 | |
| 10 | 0423-923 | CLAMP,ADEL-PB CABLE | 1 | $8.21 | |
| 11 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 12 | 1502-695 | CALIPER, MECHANICAL/HYDRAULIC | 1 | $398.95 | |
| 13 | 1502-161 | KIT,PAD SPRINGS-ANTI/RATTLE | 1 | $22.01 | |
| 14 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 15 | 0502-605 | BRACKET,ASSEMBLY | 1 | $124.95 | |
| 16 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 17 | 0502-985 | SPRING,PARKING BRAKE | 1 | $13.73 | |
| 18 | 1502-160 | KIT-ACTUATION LEVER W/SPRING HOLE | 1 | $56.95 | |
| 19 | 0502-988 | NUT,PARKING BRAKE ACTUATOR | 1 | $5.51 | |
| 20 | 8408-836 | SCREW,CAP-HFH M8X1.25X35 CL8.8 w/2353 | 1 | $2.47 | |
| 21 | 1402-710 | ROTOR-MACH (DURABAR) | 1 | $126.95 | |
| 22 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 23 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 24 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 25 | 1402-388 | HOSE,BRAKE-REAR | 1 | $148.95 | |
| 26 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 |
