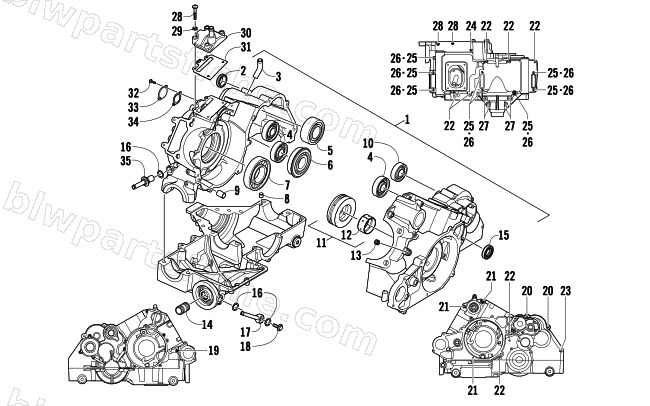

2010 Arctic Cat TRV 1000 CRUISER — CRANKCASE ASSEMBLY
2010 TRV 1000 CRUISER
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0801-198 | CRANKCASE REPLACEMENT-SERV PKG | 1 | $2,202.95 | |
| 2 | 0830-035 | SEAL, DRIVESHAFT | 1 | $16.49 | |
| 3 | 0801-118 | PIPE,BREATHER | 1 | $22.95 | |
| 4 | 0832-050 | BEARING,CONRAD-6304 | 1 | $20.63 | |
| 5 | 0832-048 | BEARING,DRIVESHAFT | 1 | $122.95 | |
| 6 | 0832-083 | BEARING,6306NR-W/SNAP RING | 1 | $54.95 | |
| 7 | 0832-042 | BEARING,BALL-S/R 40X80X18 | 1 | $66.95 | |
| 8 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 9 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 10 | 0832-049 | BEARING,CONRAD-6204 | 1 | $17.87 | |
| 11 | 0832-055 | BEARING,CRANK-SHELL ASSY | 1 | $192.95 | |
| 13 | 0801-002 | PLUG, ENGINE CASE | 1 | $3.71 | |
| 14 | 0812-066 | UNION,OIL FILTER (KY) | 1 | $13.73 | |
| 15 | 0822-052 | SEAL, COUNTER SHAFT RH | 1 | $10.97 | |
| 16 | 0812-026 | GASKET,WASHER | 1 | $3.57 | |
| 17 | 0812-028 | FITTING,OIL COOLER-40 DEG. | 1 | $48.95 | |
| 18 | 0812-025 | BOLT,OIL COOLER | 1 | $20.63 | |
| 19 | 8468-685 | SCREW,MACH-TSPNH M6X1.0X85 CL8.8 BLK | 1 | $19.25 | |
| 20 | 8468-650 | SCREW,MACH-TSPNH M6X1.0X50 CL8.8 BLK | 1 | $1.78 | |
| 21 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 22 | 8468-665 | SCREW,MACH-TSPNH M6X1.0X65 CL8.8 BLK | 1 | $1.23 | |
| 23 | 8468-670 | SCREW,MACH-TSPNH M6X1.0X70 CL8.8 BLK | 1 | $3.02 | |
| 24 | 8468-640 | SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLK | 1 | $0.68 | |
| 25 | 8412-870 | SCREW,CAP-HFH M8X1.25X70 CL8.8 RIE SIL | 1 | $3.30 | |
| 26 | 0830-008 | GASKET, COPPER 8X14X1 | 1 | $1.37 | |
| 27 | 8412-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE SIL | 1 | $9.59 | |
| 28 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 29 | 0830-107 | SEAL,FASTENER | 1 | $4.95 | |
| 30 | 0801-088 | COVER,BREATHER | 1 | $33.95 | |
| 31 | 0830-160 | GASKET,BREATHER | 1 | $3.16 | |
| 32 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 33 | 0818-107 | CAP,ENGINE CASE SHIFT SHAFT | 1 | $20.95 | |
| 34 | 0830-134 | GASKET,CHAIN TENSIONER & SHIFT, VTWIN | 1 | $2.33 | |
| 35 | 0812-051 | FITTING,OIL-THREADED (VTWIN) | 1 | $41.95 |
