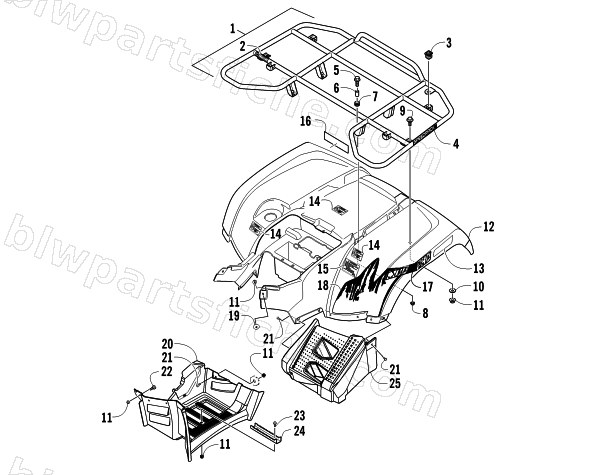

2011 Arctic Cat 1000 H2 EFI MUD PRO — REAR RACK, BODY PANEL, AND FOOTWELL ASSEMBLIES
2011 1000 H2 EFI MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-317 | RACK,REAR-ASSEMBLY | 1 | $405.95 | |
| 2 | 0411-648 | DECAL,WARNING-REAR RACK (200 LB.) | 1 | $3.30 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 5 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 6 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 7 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 8 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 9 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 10 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 11 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 12 | 2516-752 | FENDER,REAR-M.BLACK-ASSY | 1 | $1,049.95 | |
| 13 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 13 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 14 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 15 | 2411-143 | DECAL,TIRE PRESSURE (FIS) | 1 | $3.02 | |
| 16 | 2411-277 | DECAL,BACKSIDE-REAR FENDER (MP) | 1 | $6.47 | |
| 17 | 2411-272 | DECAL,"MUD PRO"-U-RR FNDR-RH(SLIME | 1 | $10.97 | |
| 17 | 2411-273 | DECAL,"MUD PRO"-UPR-RR FDR-LH(SLIME | 1 | $10.97 | |
| 18 | 2411-382 | DECAL,LOWER-REAR FENDER-RH (SBLIME H2 MP | 1 | $66.95 | |
| 18 | 2411-383 | DECAL,LOWER-REAR FENDER-LH (SBLIME H2 MP | 1 | $66.95 | |
| 19 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 20 | 2506-856 | FOOTWELL,RH(TRV H2) | 1 | $156.95 | |
| 20 | 2506-857 | FOOTWELL,LH(TRV H2) | 1 | $156.95 | |
| 21 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 22 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 23 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 24 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 25 | 2416-326 | PANEL, FILLER-RH | 1 | $405.95 | |
| 25 | 2416-327 | PANEL, FILLER-LH | 1 | $405.95 |
