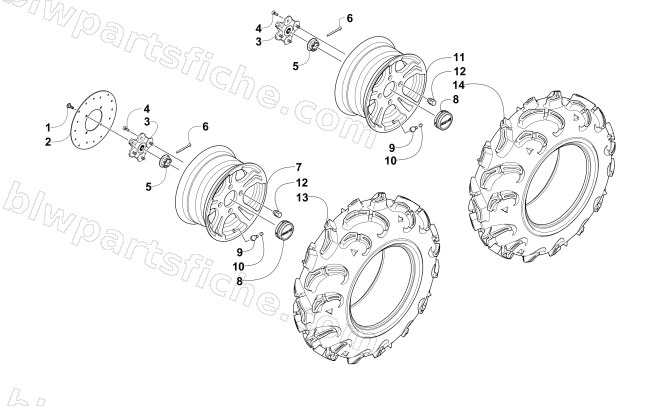

2011 Arctic Cat 1000 H2 EFI MUD PRO — WHEEL AND TIRE ASSEMBLY
2011 1000 H2 EFI MUD PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-418 | KIT,BRAKE DISC (1402-455) | 1 | $56.95 | |
| 3 | 1502-437 | HUB - ASSEMBLY | 1 | $180.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 6 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 7 | 1402-732 | WHEEL,FRONT - ALUMINUM (14X6.5) | 1 | $159.95 | |
| 8 | 1402-736 | CAP, CENTER | 1 | $24.77 | |
| 9 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 11 | 1402-918 | WHEEL,REAR-ALUMINUM (14X8.0) | 1 | $164.95 | |
| 12 | 0423-618 | NUT,LUG MOUNTING-CHROME | 1 | $3.57 | |
| 13 | 1402-855 | TIRE,MAXXIS ZILLA-28X9X14 | 1 | $219.95 | |
| 14 | 1402-901 | TIRE,MAXXIS ZILLA AT 28X11-14 | 1 | $266.95 |
