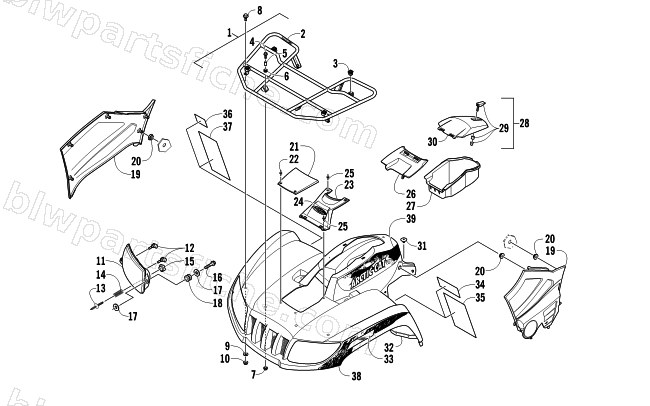

2011 Arctic Cat 1000s H2 EFI — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2011 1000s H2 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-643 | RACK,FRONT-ASSEMBLY (W/O FENCE) | 1 | $324.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 11 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 11 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 12 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 13 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 14 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 15 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 16 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 19 | 2406-588 | PANEL,SIDE-RH (GZ) | 1 | $66.95 | |
| 19 | 2406-589 | PANEL,SIDE-LH (GZ) | 1 | $82.95 | |
| 20 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 21 | 1406-358 | RADIATOR-ACCESS | 1 | $16.49 | |
| 22 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 23 | 1406-484 | COVER,STEERING POST | 1 | $17.87 | |
| 24 | 2411-330 | DECAL,POWER STEERING | 1 | $13.73 | |
| 25 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 26 | 0470-513 | COVER, STORAGE BOX | 1 | $22.01 | |
| 27 | 1406-573 | BOX,STORAGE | 1 | $26.95 | |
| 28 | 2506-234 | LID,STORAGE BOX-W/LATCH | 1 | $32.95 | |
| 29 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 30 | 0470-514 | LID, STORAGE BOX | 1 | $24.77 | |
| 31 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 32 | 4506-215 | FENDER,FRONT SUBLIME-ASSY | 1 | $1,097.95 | |
| 33 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 33 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 34 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 35 | 2411-124 | DECAL,WARNING-GENERAL 16 | 1 | $39.95 | |
| 36 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 37 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 38 | 2411-332 | DECAL,FRONT SIDE-RH (A-BODY UTLY) | 1 | $23.39 | |
| 38 | 2411-333 | DECAL,FRONT SIDE-LH (A-BODY UTLY) | 1 | $23.39 | |
| 39 | 2411-264 | DECAL,SIDE-ARC-CAT-RH-AMGRN(ABODY UTY | 1 | $42.95 | |
| 39 | 2411-265 | DECAL,SIDE-ARC-CAT-LH-AMGRN(ABODY UTY | 1 | $42.95 |
