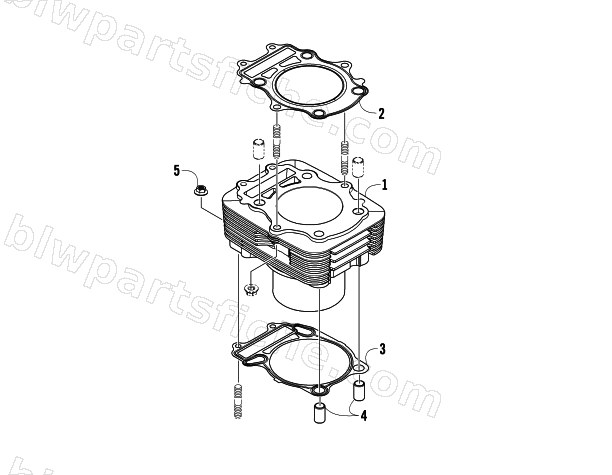

2011 Arctic Cat 350 CR — CYLINDER ASSEMBLY
2011 350 CR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0804-042 | CYLINDER-MACHINING | 1 | $525.95 | |
| 2 | 0830-050 | GASKET, CYLINDER HEAD | 1 | $102.95 | |
| 3 | 0830-053 | GASKET, CYLINDER | 1 | $33.95 | |
| 4 | 0829-046 | PIN,DOWEL | 1 | $3.44 | |
| 5 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 |
