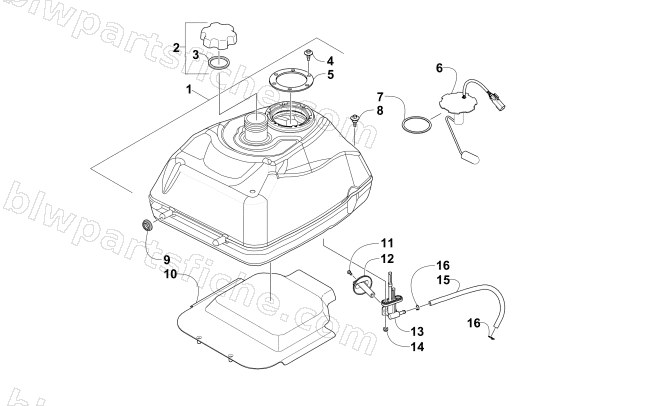

GAS TANK ASSEMBLY
2011 350 CR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-406 | TANK,FUEL-ASSEMBLY (350 NA) | 1 | $365.95 | |
| 2 | 3306-297 | CAP ASSY FUEL TANK | 1 | $30.95 | |
| 4 | 3306-300 | BOLT WASHER 5*16 | 1 | $2.61 | |
| 5 | 3306-299 | MOUNT FUEL PUMP | 1 | $6.47 | |
| 6 | 3313-852 | FUEL UNIT | 1 | $64.95 | |
| 7 | 3313-845 | SEAL | 1 | $12.35 | |
| 8 | 0423-732 | SCREW,FUEL TANK | 1 | $2.61 | |
| 9 | 0423-460 | GROMMET, FUEL TANK | 1 | $4.26 | |
| 10 | 3313-833 | SHIELD,FUEL TANK | 1 | $33.95 | |
| 11 | 0423-146 | SCREW,VALVE KNOB | 1 | $1.92 | |
| 12 | 3313-287 | KNOB,FUEL TANK | 1 | $3.16 | |
| 13 | 3313-325 | R/B 3307-149 | 1 | $62.95 | |
| 14 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 15 | 3313-288 | HOSE,FUEL | 1 | $10.97 | |
| 16 | 3313-684 | CLAMP D9.5 TUBE | 1 | $2.47 |
