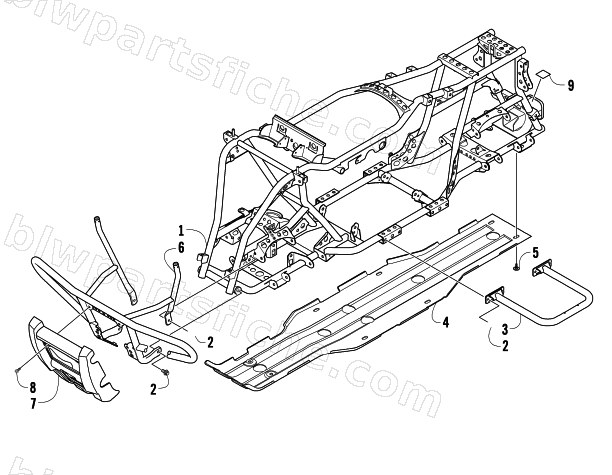

2011 Arctic Cat 366 SE — FRAME AND RELATED PARTS
2011 366 SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-727 | FRAME,PAINTED BLACK (366) | 1 | $1,429.95 | |
| 2 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 3 | 3313-351 | FOOTREST-BLACK | 1 | $66.95 | |
| 4 | 3313-755 | PLATE SKID | 1 | $74.95 | |
| 5 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 6 | 3313-357 | BUMPER,FRONT-PAINTED BLACK | 1 | $244.95 | |
| 7 | 3313-758 | BUMPER FRONT (FASCIA) | 1 | $37.95 | |
| 8 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 9 | 1411-077 | R/B 4411-550 | 1 | $3.95 |
