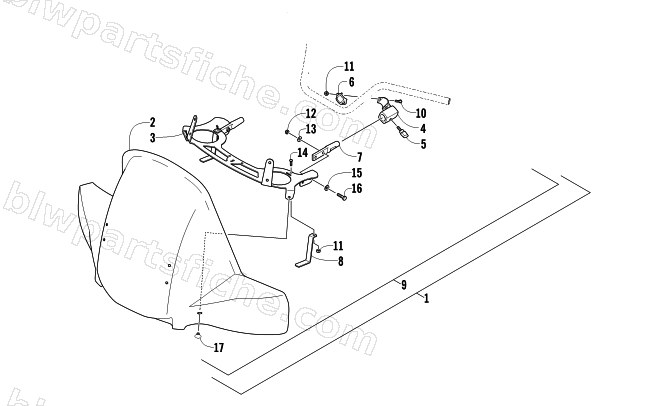

2011 Arctic Cat 366 SE — WINDSHIELD ASSEMBLY
2011 366 SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1436-551 | KIT,WINDSHIELD-BLACK (C-BODY)-STD | 1 | $219.95 | |
| 2 | 1441-803 | WINDSHIELD,BLACK | 1 | $146.95 | |
| 3 | 0541-589 | BRACKET,WINDSHIELD-PTD BLK | 1 | $53.95 | |
| 4 | 1436-554 | STD QR WINDSHIELD BRACKET KIT | 1 | $53.95 | |
| 5 | 1441-624 | KNOB,PLASTIC-BLK | 1 | $8.21 | |
| 6 | 1402-338 | HOLDER | 1 | $8.95 | |
| 7 | 0541-591 | PIN,TAPER-LEFT-PTD BLK | 1 | $13.95 | |
| 8 | 0541-594 | BRACKET,CUP HOLDER-PTD BLK | 1 | $20.63 | |
| 9 | 1436-560 | HARDWARE ATTACHMENT KIT- STD WINDSHIELD | 1 | $20.63 | |
| 11 | 8431-503 | NUT,HEX REG NYLOCK M5-.8 Z&BLK | 1 | $1.50 | |
| 17 | 1436-313 | KIT,PLUG,CHRISTMAS TREE 8.5 X 13,10 PK | 1 | $9.59 |
