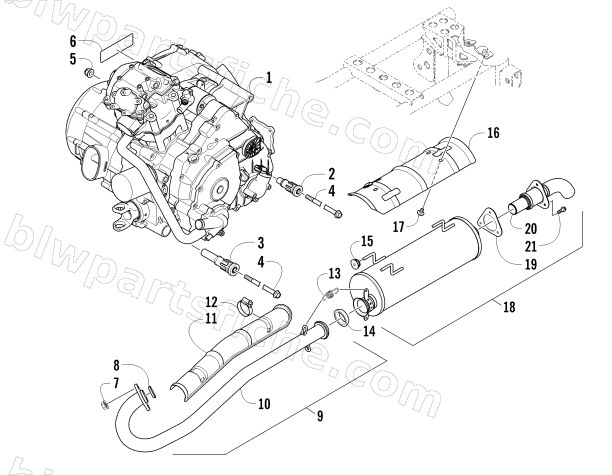

ENGINE AND EXHAUST
2011 425 EFI CR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-836 | ENGINE,450 KD W/ RUBBER MOUNTS-PACK | 1 | $4,186.95 | |
| 2 | 0801-188 | MOUNT, RUBBER ENG | 1 | $30.95 | |
| 3 | 0801-189 | LONG RUB.BUSH,ENG HANGER | 1 | $33.95 | |
| 4 | 3323-174 | BOLT,HFH M10-1.25X185 CL10.9 ZY | 1 | $10.95 | |
| 5 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 6 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 7 | 3303-332 | NUT FLANGE 8MM | 1 | $0.81 | |
| 8 | 3313-743 | SEAL,EXHAUST PIPE | 1 | $20.63 | |
| 9 | 3306-314 | PIPE,EXHAUST-ASSEMBLY | 1 | $244.95 | |
| 10 | 3306-313 | PIPE COMP EXHAUST-BLACK | 1 | $129.95 | |
| 11 | 3313-025 | SHIELD,EXHAUST PIPE | 1 | $64.95 | |
| 12 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 13 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 14 | 3306-315 | GASKET EXH TAILPIPE | 1 | $42.95 | |
| 15 | 3313-264 | GROMMET,MUFFLER | 1 | $12.35 | |
| 16 | 3313-026 | COVER,MUFFLER | 1 | $47.95 | |
| 17 | 3313-711 | BOLT,WASHER 6*12 | 1 | $3.02 | |
| 18 | 3306-551 | MUFFLER BLACK | 1 | $824.95 | |
| 19 | 3313-708 | GASKET,SPARK ARRESTER | 1 | $12.35 | |
| 20 | 3313-707 | SPARK ARRESTER-WELDMENT | 1 | $196.95 | |
| 21 | 3313-710 | BOLT,FLANGE 8*16 | 1 | $1.78 |
