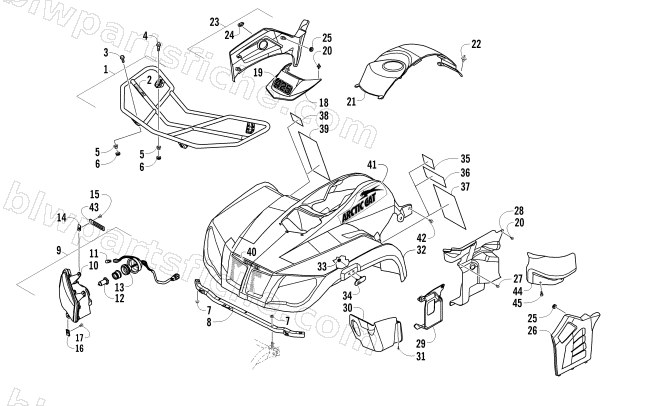

2011 Arctic Cat 425 EFI CR — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2011 425 EFI CR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-330 | RACK,FRONT | 1 | $227.95 | |
| 2 | 1411-681 | DECAL,WARNING RACK (75LB) | 1 | $19.25 | |
| 3 | 3313-522 | BOLT,M8*25 | 1 | $1.78 | |
| 4 | 3313-713 | BOLT,FLANGE 8*50 | 1 | $3.02 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 8 | 3306-331 | TUBE,REAR MOUNT-FRONT RACK | 1 | $33.95 | |
| 9 | 3306-268 | LIGHT ASS'Y R HEAD | 1 | $205.95 | |
| 9 | 3306-269 | LIGHT ASS'Y L HEAD | 1 | $205.95 | |
| 10 | 3306-270 | UNIT HEAD LIGHT R | 1 | $180.95 | |
| 10 | 3306-271 | UNIT HEAD LIGHT L | 1 | $180.95 | |
| 11 | 3303-847 | BULB POSITION LIGHT 12V5W | 1 | $5.65 | |
| 12 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 13 | 3306-272 | SOCKET COMP | 1 | $30.95 | |
| 14 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 15 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 16 | 3303-267 | NUT CLIP 6MM **0000 C.97.07.26. | 1 | $1.23 | |
| 17 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 18 | 3306-404 | ACCESS PANEL,ELECTRIC (BLACK) | 1 | $13.73 | |
| 19 | 2411-497 | DECAL,COVER-STEERING POST (425) | 1 | $4.95 | |
| 20 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 | |
| 21 | 3306-397 | COVER,TANK (MARSH) | 1 | $13.73 | |
| 21 | 3306-280 | COVER,TANK (RED) | 1 | $16.49 | |
| 21 | 3306-398 | COVER,TANK (LIME) | 1 | $13.73 | |
| 22 | 3304-057 | CLIP FENDER | 1 | $1.92 | |
| 23 | 3313-857 | PANEL,SIDE-RH-ASSY | 1 | $66.95 | |
| 24 | 3306-307 | CAP, SIDE COVER | 1 | $3.44 | |
| 25 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 26 | 3313-667 | PANEL,SIDE-LH | 1 | $79.95 | |
| 27 | 3305-448 | CLIP,MUDGUARD | 1 | $2.33 | |
| 28 | 3306-284 | PANEL,SPLASH RIGHT | 1 | $20.63 | |
| 28 | 3306-285 | PANEL SPLASH LEFT | 1 | $20.63 | |
| 29 | 3306-286 | PANEL FRONT,SPLASH RIGHT | 1 | $33.95 | |
| 29 | 3306-287 | PANEL ASSY,SPLASH LEFT | 1 | $32.95 | |
| 30 | 3313-754 | SHIELD LINKAGE | 1 | $13.73 | |
| 31 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 32 | 3306-399 | FENDER,FRONT-W/DECALS (MARSH) | 1 | $567.95 | |
| 32 | 3306-282 | FENDER,FRONT (RED) W/DECALS | 1 | $567.95 | |
| 32 | 3306-401 | FENDER,FRONT-W/DECALS (LIME) | 1 | $486.95 | |
| 33 | 3304-774 | NUT FLANGE 5MM(G) | 1 | $0.81 | |
| 34 | 3313-359 | REFLECTOR,FRONT (OVAL) | 1 | $13.73 | |
| 35 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 36 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 37 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 38 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 39 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 40 | 2411-501 | DECAL,FRONT-"ARCTIC CAT" (350/425) | 1 | $10.97 | |
| 41 | 2411-494 | DECAL,SIDE-RH (350 UTLY) | 1 | $42.95 | |
| 41 | 2411-495 | DECAL,SIDE-LH (350 UTLY) | 1 | $42.95 | |
| 42 | 3305-783 | BOLT WASHER 8*16 | 1 | $3.02 | |
| 43 | 3304-157 | CLIP 2*70 | 1 | $1.92 | |
| 44 | 3313-844 | PROTECTOR HOSE | 1 | $16.49 | |
| 45 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 |
