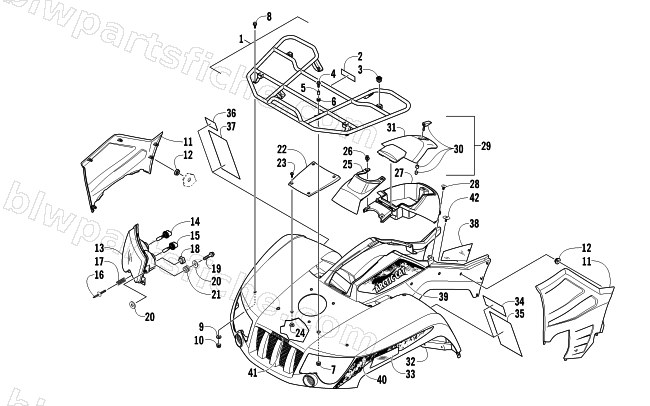

2011 Arctic Cat 450 EFI — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2011 450 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-107 | RACK,FRONT W/FENCE-ASSEMBLY | 1 | $324.95 | |
| 1 | 2506-646 | RACK,FRONT-ASSEMBLY (W/O FENCE) | 1 | $279.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 11 | 2406-302 | PANEL,SIDE-RH | 1 | $66.95 | |
| 11 | 2416-133 | PANEL,SIDE-LH (450) | 1 | $50.95 | |
| 12 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 13 | 0609-852 | HEADLIGHT-ASSY-RH | 1 | $185.95 | |
| 13 | 0609-853 | HEADLIGHT-ASSY-LH | 1 | $185.95 | |
| 14 | 0409-073 | BULB,HEADLIGHT(899) | 1 | $33.95 | |
| 15 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 16 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 17 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 18 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 19 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 21 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 22 | 2416-170 | COVER,RADIATOR-MARSH GREEN | 1 | $20.63 | |
| 22 | 2416-134 | COVER,RADIATOR-RED | 1 | $20.63 | |
| 22 | 2516-867 | COVER,RADIATOR-ARCTIC ICE-PTD | 1 | $64.95 | |
| 22 | 4506-378 | COVER,RADIATOR-MATTE BLK-PTD | 1 | $51.95 | |
| 22 | 2416-171 | COVER,RADIATOR-LIME GREEN | 1 | $21.95 | |
| 23 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 24 | 0423-997 | NUT,T W/TEETH-M6 | 1 | $0.68 | |
| 25 | 1406-972 | COVER,STEERING POST-BLACK | 1 | $20.63 | |
| 25 | 2516-698 | COVER,POST STEERING-M. BLACK-RTD-PTD | 1 | $66.95 | |
| 25 | 4506-379 | COVER,POST STEERING-MATTE BLACK-PTD | 1 | $41.95 | |
| 26 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 27 | 2416-240 | BOX,STORAGE-BLACK | 1 | $107.95 | |
| 27 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 28 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 28 | 2516-721 | BOX,STORAGE-M. BLACK-PTD | 1 | $112.95 | |
| 28 | 4506-380 | BOX,STORAGE-MATTE BLACK-PTD | 1 | $160.95 | |
| 29 | 2506-235 | COVER,STORAGE BOX-W/LATCH | 1 | $58.95 | |
| 30 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 31 | 1406-862 | COVER,STORAGE BOX | 1 | $57.95 | |
| 32 | 4506-393 | FENDER,FRONT-MARSH-ASSY | 1 | $566.95 | |
| 32 | 4506-392 | FENDER,FRONT-RED-ASSY | 1 | $586.95 | |
| 32 | 4506-394 | FENDER,FRONT-LIME-ASSY | 1 | $551.95 | |
| 33 | 1411-078 | REFLECTOR,FRONT-RH | 1 | $5.37 | |
| 33 | 1411-079 | REFLECTOR,FRONT-LH | 1 | $5.37 | |
| 33 | 2516-912 | FENDER,FRONT-ARCTIC ICE-ASSY (B-BODY) | 1 | $969.95 | |
| 33 | 2516-421 | FENDER,FRONT-A. T. CAMO-ASSY | 1 | $2,086.95 | |
| 34 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 35 | 2411-124 | DECAL,WARNING-GENERAL 16 | 1 | $39.95 | |
| 36 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 37 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 38 | 0412-394 | SHIELD,HEAT | 1 | $3.16 | |
| 39 | 2411-298 | DECAL,SIDE-ARCTIC CAT-RH-GRN (BBODY UTLY | 1 | $50.95 | |
| 39 | 2411-299 | DECAL,SIDE-ARCTIC CAT-LH-GRN (BBODY UTLY | 1 | $50.95 | |
| 39 | 2411-296 | DECAL,SIDE-ARCTIC CAT-RH-RED (BBODY UTLY | 1 | $50.95 | |
| 39 | 2411-297 | DECAL,SIDE-ARCTIC CAT-LH-RED (BBODY UTLY | 1 | $50.95 | |
| 39 | 2411-320 | DECAL,SIDE-ARCTIC CAT-RH-LIME(BBODY UTLY | 1 | $50.95 | |
| 39 | 2411-321 | DECAL,SIDE-ARCTIC CAT-LH-LIME(BBODY UTLY | 1 | $50.95 | |
| 40 | 2411-302 | DECAL,FRONT SIDE-RH (BB UTLY) | 1 | $20.63 | |
| 40 | 2411-303 | DECAL,FRONT SIDE-LH (BB UTLY) | 1 | $20.63 | |
| 41 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 41 | 2411-326 | DECAL,SIDE-ARCTIC CAT-RH-AC ICE(BBDY UTY | 1 | $19.25 | |
| 41 | 2411-327 | DECAL,SIDE-ARCTIC CAT-LH-AC ICE(BBDY UTY | 1 | $19.25 | |
| 41 | 2411-300 | DECAL,SIDE-ARCTIC CAT-CAMO-RH (BB UTLY) | 1 | $50.95 | |
| 41 | 2411-301 | DECAL,SIDE-ARCTIC CAT-CAMO-LH (BB UTLY) | 1 | $50.95 | |
| 42 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 42 | 2411-310 | DECAL,FRT/RR-ARCTIC CAT (A & BBODY CAMO) | 1 | $16.49 |
