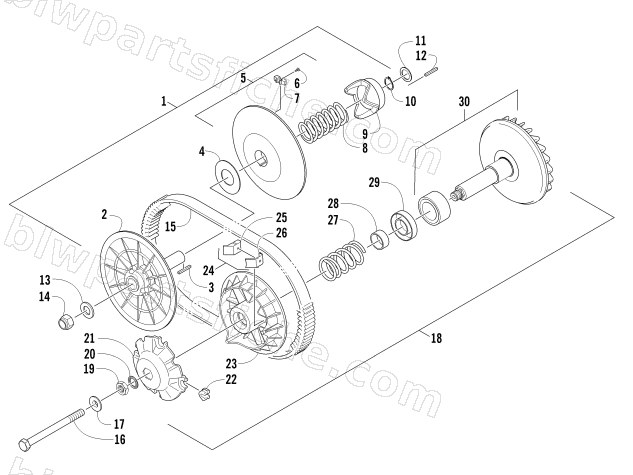

CLUTCH ASSEMBLIES
2011 700 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-073 | R/B 0823-357 | 1 | $346.95 | |
| 2 | 1402-629 | FLANGE,FIXED | 1 | $225.95 | |
| 3 | 1402-631 | SQUARE KEY 1/4 | 1 | $3.30 | |
| 4 | 0423-749 | WASHER-SHIM | 1 | $19.25 | |
| 5 | 1502-208 | FLANGE,SLIDING | 1 | $252.95 | |
| 6 | 0423-752 | SCREW,HEX. SOCKET BUTTON HEAD | 1 | $2.06 | |
| 7 | 0823-176 | SHOE,CAM-DRIVEN PULLEY | 1 | $20.63 | |
| 8 | 0423-750 | SPRING | 1 | $33.95 | |
| 9 | 1402-630 | CAM | 1 | $94.95 | |
| 10 | 0423-751 | RING,SNAP | 1 | $12.35 | |
| 11 | 0623-954 | WASHER,THRUST-.900X1.25X.042 | 1 | $1.92 | |
| 12 | 0423-718 | KEY,DRIVEN PULLEY-3/16 | 1 | $2.47 | |
| 13 | 0828-020 | WASHER, STEEL, 16.3 x 30 x 3 | 1 | $3.30 | |
| 14 | 0827-013 | NUT,HEX SHOULDER M16X1.5 | 1 | $3.02 | |
| 15 | 1402-564 | BELT,DRIVE | 1 | $144.95 | |
| 16 | 0423-673 | HEX HEAD BOLT M12X1.75-140-10.9 | 1 | $13.73 | |
| 17 | 0423-733 | WASHER, HAT | 1 | $17.87 | |
| 18 | 0823-540 | PULLEY,DRIVE-ASSEMBLY | 1 | $737.95 | |
| 19 | 0423-747 | NUT,HEXAGONAL | 1 | $3.71 | |
| 20 | 0423-746 | WASHER,LOCK | 1 | $4.13 | |
| 21 | 1502-207 | CAP ASSY | 1 | $90.95 | |
| 22 | 1402-628 | SLIDER | 1 | $4.40 | |
| 23 | 1402-625 | FLANGE,SLIDING | 1 | $252.95 | |
| 24 | 1502-205 | R/B 2402-276 | 1 | $76.95 | |
| 27 | 0423-745 | SPRING | 1 | $33.95 | |
| 28 | 1402-624 | STOPPER | 1 | $48.95 | |
| 29 | 1402-623 | SEAT,SPRING | 1 | $62.95 | |
| 30 | 1502-206 | FLANGE,FIXED | 1 | $703.95 |
