CYLINDER HEAD, VALVE TRAIN, AND RELATED ASSEMBLY

2011 700 DIESEL

Scroll / pinch to zoom · drag to pan · double-click resets

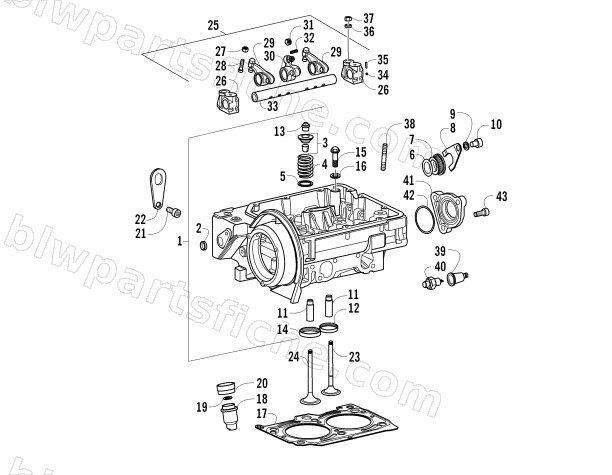

CYLINDER HEAD, VALVE TRAIN, AND RELATED ASSEMBLY diagram

#	Part No.	Description	Qty	Price
1	3206-063	CYLINDER HEAD	1	$2,709.95
2	3206-065	PLUG DIAM.18	1	$3.71
3	3206-148	RETAINER WITH HALF-COLLETS	1	$33.95
4	3206-147	VALVE SPRING	1	$20.63
5	3206-149	WASHER	1	$6.75
6	3206-076	O RING	1	$4.26
7	3206-275	PLUG	1	$20.63
8	3206-074	RETAINER	1	$12.35
9	3206-075	WASHER DIAM. 8	1	$1.50
10	3206-077	BOLT M 8 X 14	1	$1.78
11	3206-061	VALVE GUIDE STD.	1	$23.39
11	3206-062	VALVE GUIDE +0,50	1	$37.95
12	3206-073	EXHAUST V.SEAT	1	$85.95
13	3206-152	VALVE RETAINER	1	$26.95
14	3206-072	INLET V.SEAT	1	$85.95
15	3206-066	SPECIAL SCREW MM 90+10	1	$20.63
16	3206-064	WASHER DIAM. 10,2	1	$12.35
17	3206-069	HEAD GASKET 1,56 - 1,64 (1 SMALL HOLE)	1	$275.95
17	3206-070	HEAD GASKET 1,66 - 1,74 (2 SMALL HOLES)	1	$421.95
17	3206-071	HEAD GASKET 1,76 - 1,84 (3 SMALL HOLES)	1	$412.95
18	3206-068	PRECOMBUSTION CHAMBER	1	$203.95
19	3206-079	SPACER	1	$30.95
20	3206-067	PRECOMBUSTION CHAMBER LOCKING NUT	1	$37.95
21	3206-078	BOLT M 8 X 1,25 X 16	1	$3.02
22	3206-060	LIFTING BRACE	1	$10.97
23	3206-150	EXHAUST VALVE	1	$114.95
24	3206-151	INTAKE VALVE	1	$100.95
25	3206-135	ROCKER ARM ASSY	1	$1,501.95
26	3206-141	ROCK.ARM SHAFT SUPPORT	1	$126.95
27	3206-137	NUT M 6	1	$1.50
28	3206-136	ADJ.SCREW	1	$90.95
29	3206-134	ROCKER ARM (INLET/EXHAUST)	1	$187.95
30	3206-140	INJ. PUMP ROCKER ARM	1	$260.95
31	3206-139	NUT	1	$1.50
32	3206-138	ADJ.SCREW	1	$69.95
33	3206-144	ROCKER ARM SHAFT	1	$509.95
34	3206-146	PLUG DIAM.10	1	$20.63
35	3206-145	LOCKPIN 4 X 14	1	$1.50
37	3206-142	NUT M 10	1	$2.61
38	3206-143	STUD M 10 X 45	1	$12.35
39	3206-305	PIPE ELBOW	1	$12.35
40	3206-304	OIL SWITCH 1,4 BAR (WHITE MARK)	1	$187.95
41	3206-314	FLANGE	1	$26.95
42	3206-313	O-RING 40,95 X 2,62	1	$6.89
43	3206-082	SCREW M 6 X 20	1	$5.51
