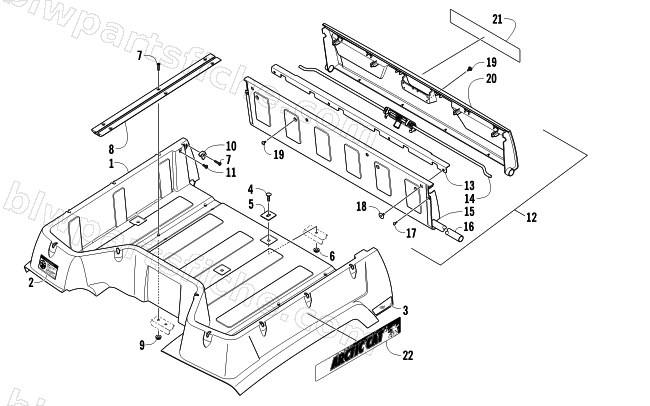

2011 Arctic Cat 700s H1 EFI TBX — CARGO BOX AND TAILGATE ASSEMBLY
2011 700s H1 EFI TBX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-767 | BOX-ASSEMBLY(W/REFLECTORS) | 1 | $952.95 | |
| 2 | 0411-975 | DECAL,WARNING-NO PASS/WEIGHT LIMIT | 1 | $23.39 | |
| 3 | 0411-980 | REFLECTOR,REAR-RH | 1 | $10.97 | |
| 3 | 0411-979 | REFLECTOR,REAR-LH | 1 | $10.97 | |
| 4 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 5 | 1506-933 | PLATE,RETAINING-BLACK (MATTE) | 1 | $12.35 | |
| 6 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 7 | 8474-630 | SCREW,MACH-TSFH M6X1.0X30 CL8.8 BLK | 1 | $1.23 | |
| 8 | 0541-364 | RAIL,BOX-PTD BLACK | 1 | $47.95 | |
| 9 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 10 | 1506-940 | STRIKER,HOOK-TAIL GATE-RH-BLACK | 1 | $16.49 | |
| 10 | 1506-941 | STRIKER,HOOK-TAIL GATE-LH-BLACK | 1 | $16.49 | |
| 11 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 12 | 1506-568 | TAILGATE,ASSY | 1 | $599.95 | |
| 13 | 1506-567 | BRACE,TAILGATE-BLACK | 1 | $79.95 | |
| 14 | 1506-561 | LATCH,TAIL GATE-ASSY | 1 | $156.95 | |
| 15 | 1406-709 | PANEL,TAILGATE-FRONT | 1 | $268.95 | |
| 16 | 1406-711 | SHAFT,PIVOT-TAILGATE | 1 | $47.95 | |
| 17 | 1406-755 | BUMPER,GROMMET | 1 | $4.95 | |
| 18 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 19 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 20 | 1406-710 | PANEL,TAILGATE-REAR | 1 | $567.95 | |
| 21 | 2411-402 | DECAL,BOX-TBX-REAR | 1 | $20.63 | |
| 22 | 2411-400 | DECAL,SIDE-BOX-ARCTIC CAT-RH-AMGRN(TBX) | 1 | $20.63 | |
| 22 | 2411-401 | DECAL,SIDE-BOX-A- CAT-LH-AMGRN(TBX) | 1 | $19.25 |
