2011 Arctic Cat 90 2X4 DVX — PISTON AND CRANKSHAFT ASSEMBLY
2011 90 2X4 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

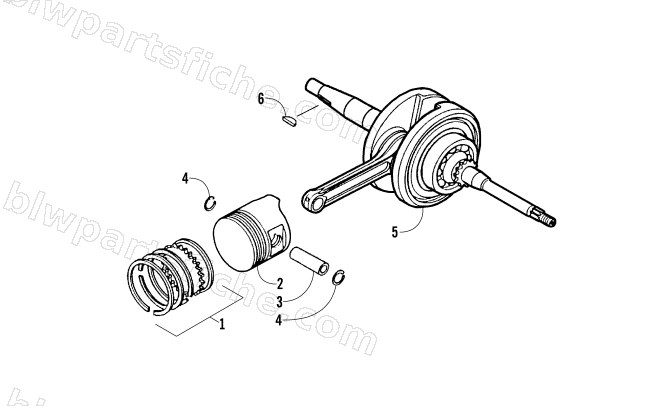

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-024 | RING SET PISTON | 1 | $58.95 | |
| 2 | 3303-025 | PISTON | 1 | $58.95 | |
| 3 | 3303-026 | PIN PISTON | 1 | $17.87 | |
| 4 | 3303-027 | CLIP PISTON PIN **0000 C.97.09.18. | 1 | $1.92 | |
| 5 | 3305-443 | CRANK SHAFT COMP | 1 | $398.95 | |
| 6 | 3303-290 | KEY WOODRUFF **0000-M1 C.99.07.07. | 1 | $2.61 |
