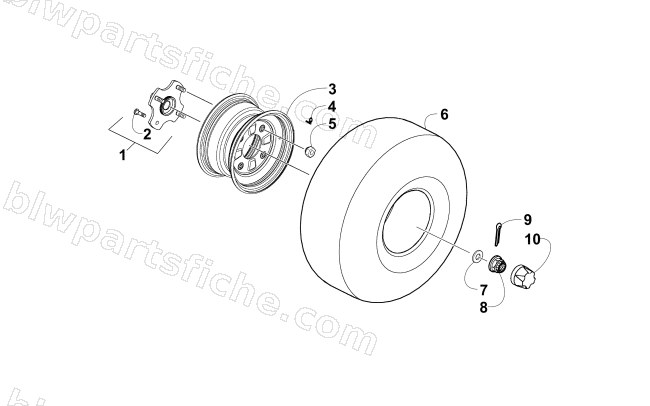

REAR WHEEL ASSEMBLY
2011 90 2X4 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-869 | HUB ASSEMBLY | 1 | $108.95 | |
| 2 | 3303-250 | BOLT CONNECTOR | 1 | $2.61 | |
| 3 | 3303-156 | RIM COMP RR WHEEL (SILVER) | 1 | $94.95 | |
| 4 | 3303-887 | R/B 3304-562 | 1 | $12.95 | |
| 5 | 3303-266 | NUT U FLANGE 10MM | 1 | $2.06 | |
| 6 | 3303-428 | TIRE ASSY RR (KENDA) | 1 | $172.95 | |
| 7 | 3305-285 | WASHER 14MM | 1 | $3.02 | |
| 8 | 3303-330 | NUT FLANGE CASTLE 14MM | 1 | $4.54 | |
| 9 | 3303-340 | PIN SPLIT 3*30 | 1 | $1.37 | |
| 10 | 3303-430 | CAP WHEEL SHAFT | 1 | $3.71 |
