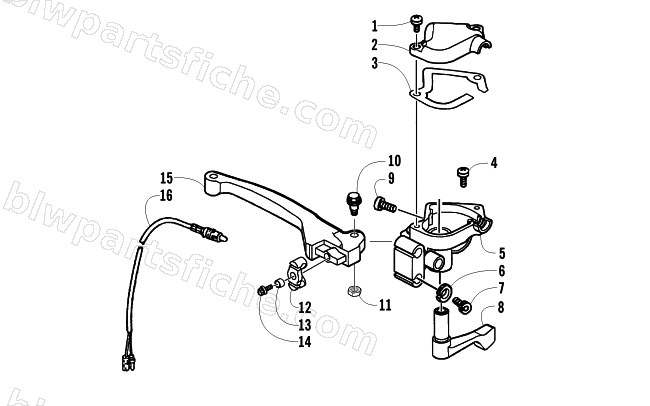

2011 Arctic Cat 90 2X4 DVX — THROTTLE CONTROL ASSEMBLY
2011 90 2X4 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3305-979 | THROTTLE CONTROL ASSY | 1 | $122.95 | |
| 1 | 3303-315 | SCREW PAN 4*16 | 1 | $1.09 | |
| 2 | 3303-207 | COVER, THROTTLE CONTROL | 1 | $17.87 | |
| 3 | 3303-209 | PACKING | 1 | $4.13 | |
| 4 | 3303-397 | SOCKET BOLT 6*20 (BLACK) | 1 | $1.78 | |
| 5 | 3303-204 | BRACKET HANDLE R | 1 | $37.95 | |
| 6 | 3303-271 | NUT FIXING | 1 | $2.06 | |
| 7 | 3303-208 | BOLT WIRE ADJUST | 1 | $4.54 | |
| 8 | 3303-200 | LEVER CHOKE | 1 | $30.95 | |
| 9 | 3305-980 | SCREW PAN 5*24 | 1 | $1.50 | |
| 10 | 3303-255 | BOLT HNDL COVER PIVOT (M6*22) | 1 | $1.50 | |
| 11 | 3303-262 | NUT U 6MM | 1 | $1.50 | |
| 12 | 3303-201 | EQUALIZER BRK CABLE | 1 | $16.49 | |
| 13 | 3303-202 | SPACER | 1 | $9.59 | |
| 14 | 3305-344 | BOLT FLANGE 6*16 | 1 | $1.09 | |
| 15 | 3306-054 | LEVER R STRG HNDL | 1 | $20.63 | |
| 16 | 3303-140 | SW ASSY FR STOP | 1 | $20.63 |
