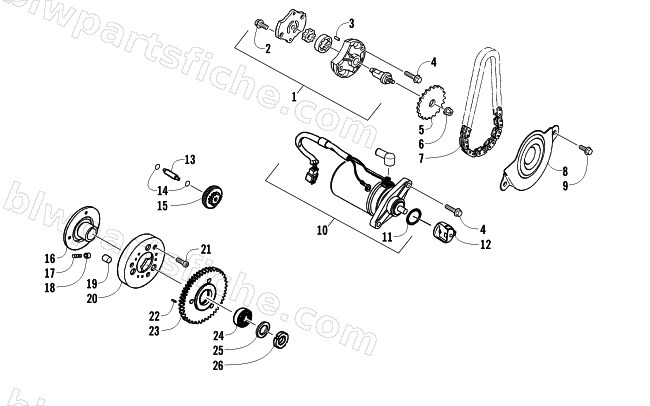

2011 Arctic Cat 90 2X4 UTILITY — STARTER MOTOR AND OIL PUMP ASSEMBLY
2011 90 2X4 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-045 | OIL PUMP ASSY | 1 | $64.95 | |
| 2 | 3304-426 | SCREW PAN 3*10 | 1 | $0.81 | |
| 3 | 3304-144 | PIN DOWEL 4*6.5 | 1 | $1.37 | |
| 4 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 | |
| 5 | 3303-046 | SPRKT OIL PUMP DRIVEN **9000 C.2000.04 | 1 | $12.35 | |
| 6 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 7 | 3303-047 | CHAIN OIL PUMP | 1 | $33.95 | |
| 8 | 3303-051 | SEPARATOR OIL **9000 C.98.11.16. | 1 | $3.57 | |
| 9 | 3303-381 | BOLT FLANGE SH 6*12 | 1 | $0.81 | |
| 10 | 3305-802 | MOTOR ASSY START | 1 | $227.95 | |
| 11 | 3303-604 | O-RING | 1 | $1.78 | |
| 12 | 3303-130 | HOLDER COMP STARTER REDUCTION **9000 | 1 | $20.63 | |
| 13 | 3303-110 | SHAFT START REDUCTION **9000 C.97.09.18 | 1 | $20.63 | |
| 14 | 3303-282 | WASHER 24*8.5 **0000 C.97.07.26. | 1 | $1.23 | |
| 15 | 3303-109 | GEAR COMP ST REDUCTION **9000 C.97.09.18 | 1 | $69.95 | |
| 16 | 3303-115 | BOSS STARTER CLUTCH **9000 C.97.09.18. | 1 | $58.95 | |
| 17 | 3303-113 | SPG ROLLER ST CLUTCH **0000 C.97.09.18 | 1 | $1.64 | |
| 18 | 3303-114 | STARTING ROLLER SPG **9000 C.97.09.18. | 1 | $1.92 | |
| 19 | 3303-293 | ROLLER 10.2*11.5 **9000 C.97.07.26. | 1 | $3.30 | |
| 20 | 3303-112 | OUTER COMP ST CLUTCH **9000 C.97.09.18. | 1 | $74.95 | |
| 21 | 3303-396 | SOCKET BOLT 6*12 | 1 | $1.95 | |
| 22 | 3303-395 | ROLLER 6*10 | 1 | $1.78 | |
| 23 | 3303-111 | GEAR COMP STARTER **(1) C.97.11.04. | 1 | $60.95 | |
| 24 | 3303-292 | BRG BALL RADIAL 6005-2NG/25*47*12 | 1 | $33.95 | |
| 25 | 3303-285 | CIR CLIP B 1I 14 | 1 | $4.40 | |
| 26 | 3303-258 | NUT SPECIAL 24MM **9000 C.97.07.26. | 1 | $3.02 |
