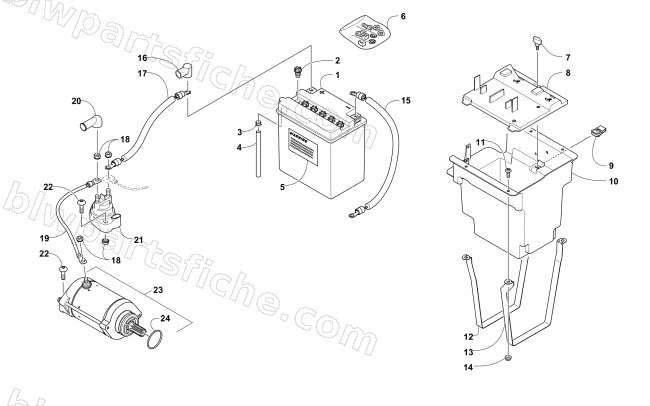

2011 Arctic Cat PROWLER 1000 H2 EFI XTZ — BATTERY AND STARTER MOTOR ASSEMBLY
2011 PROWLER 1000 H2 EFI XTZ
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0445-081 | BATTERY,ES-12V 30AH (YB30L-B) | 1 | $209.95 | |
| 2 | 0645-588 | CAP,BATTERY(GREEN FOR 0645-197) | 1 | $1.78 | |
| 3 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 4 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 5 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 6 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 7 | 1441-624 | KNOB,PLASTIC-BLK | 1 | $8.21 | |
| 8 | 2406-949 | COVER,BATTERY-H2 | 1 | $19.25 | |
| 9 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 10 | 2406-914 | BOX,BATTERY | 1 | $54.95 | |
| 11 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 12 | 0470-854 | STRAP,BATTERY BOX-RH | 1 | $54.95 | |
| 13 | 0470-855 | STRAP,BATTERY BOX-LH | 1 | $54.95 | |
| 14 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 15 | 0445-079 | CABLE,BATTERY-ENGINE(24" BLK #6) | 1 | $33.95 | |
| 16 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 17 | 0445-078 | CABLE,BATTERY-RELAY (12" RED #6) | 1 | $26.95 | |
| 18 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 19 | 0445-080 | CABLE,SOLENOID-STARTER (42" RED #6) | 1 | $47.95 | |
| 20 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 21 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 22 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 23 | 0825-025 | MOTOR,STARTER-ENGINE (PD 9) | 1 | $268.95 | |
| 24 | 0830-228 | O-RING,33.5MMX3MM | 1 | $5.09 |
