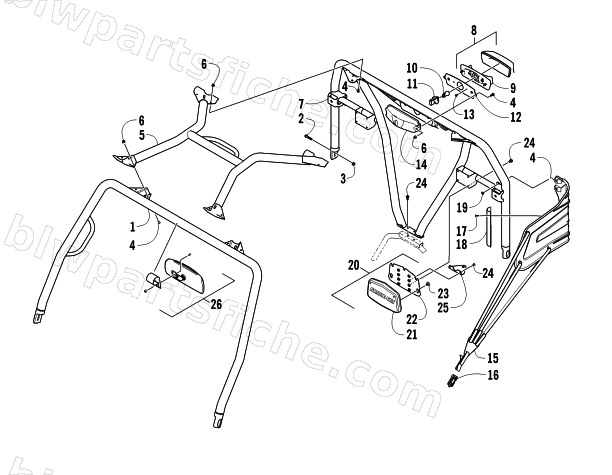

2011 Arctic Cat PROWLER 1000 H2 EFI XTZ — ROPS AND TAILLIGHT ASSEMBLY
2011 PROWLER 1000 H2 EFI XTZ
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-859 | HOOP,CANOPY-FRONT-PTD BLACK | 1 | $324.95 | |
| 2 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 3 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 4 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 5 | 4506-865 | TOP,CANOPY-PTD BLACK | 1 | $244.95 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 4506-861 | HOOP,CANOPY-REAR-PTD BLACK | 1 | $567.95 | |
| 8 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 9 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 10 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 11 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 12 | 2406-069 | BRACKET,TAILLIGHT MOUNT-BLACK | 1 | $20.63 | |
| 13 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 14 | 2516-893 | COVER,TAILLIGHT | 1 | $13.73 | |
| 15 | 0437-101 | KIT,ROUND TUBE SIDE RESTRAINT | 1 | $219.95 | |
| 15 | 0517-141 | GUARD W/NET-LH-RND TUBE | 1 | $101.95 | |
| 16 | 2416-793 | CLIP,SIDE NET | 1 | $5.78 | |
| 17 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 18 | 4506-149 | BRACKET, MOUNTING - RND - PTD BLACK | 1 | $13.73 | |
| 19 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 20 | 4406-989 | PAD,HEADREST | 1 | $26.95 | |
| 21 | 1406-884 | R/B 4406-989 | 1 | $28.95 | |
| 22 | 1506-722 | HEADREST MOUNT-PAINTED-BLACK | 1 | $89.95 | |
| 23 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 24 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 25 | 4506-296 | BRACKET,FLAG MOUNTING-PTD BLACK | 1 | $17.87 | |
| 26 | 1436-414 | MIRROR KIT, REARVIEW (RP) | 1 | $87.95 |
