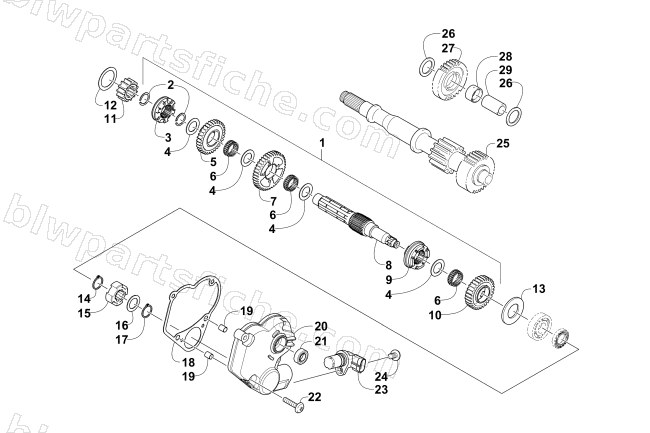

2011 Arctic Cat PROWLER 1000 H2 EFI XTZ — SECONDARY TRANSMISSION ASSEMBLY (ENGINE SERIAL NO. 40010070 AND UP)
2011 PROWLER 1000 H2 EFI XTZ
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0822-124 | R/B 0822-144 | 1 | $1,405.95 | |
| 2 | 0831-085 | CIRLCLIP,CE-SHAFT-EXTERNAL | 1 | $5.78 | |
| 3 | 0822-120 | DOG,SLIDING-REVERSE SD | 1 | $102.95 | |
| 4 | 0822-121 | SHIM,DRIVE GEAR SPACER | 1 | $17.87 | |
| 5 | 0822-119 | GEAR,REVERSE-DRIVEN-32T | 1 | $156.95 | |
| 6 | 0832-082 | BEARING,ROLLER NEEDLE-25X30X13 | 1 | $42.95 | |
| 7 | 0822-114 | GEAR,DRIVEN-LOW-40T | 1 | $150.95 | |
| 8 | 0822-113 | COUNTERSHAFT-SD | 1 | $331.95 | |
| 9 | 0822-116 | DOG,SLIDING-FORWARD SD | 1 | $180.95 | |
| 10 | 0822-115 | GEAR,DRIVEN-HIGH-30T | 1 | $129.95 | |
| 11 | 0822-125 | GEAR,SPUR-13T-13T 20 DEGREES PA | 1 | $85.95 | |
| 12 | 0828-019 | WASHER,THRUST, SECONDARY TRANSMISSION | 1 | $8.21 | |
| 13 | 0828-011 | WASHER, STEEL 20 x 40 x 1 | 1 | $6.75 | |
| 14 | 0831-040 | RING, EXTERNAL RETAINING - DSH-17 | 1 | $0.40 | |
| 15 | 0822-050 | TRIGGER, SPEEDO SENSOR | 1 | $16.49 | |
| 16 | 0828-069 | WASHER, THRUST | 1 | $1.37 | |
| 17 | 0831-039 | RING,EXTERNAL RETAINING - DSH-13 | 1 | $0.26 | |
| 18 | 0830-194 | GASKET,SHIFT-SPEEDO | 1 | $4.54 | |
| 19 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 20 | 0806-105 | COVER,SHIFT-SPEEDO | 1 | $71.95 | |
| 21 | 0830-044 | SEAL, SUB-GEAR SHIFT | 1 | $4.54 | |
| 22 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 23 | 0824-042 | SENSOR,SPEEDO-HALL EFFECT | 1 | $47.95 | |
| 24 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 25 | 0822-001 | DRIVESHAFT | 1 | $324.95 | |
| 26 | 0828-016 | WASHER,THRUST, SECONDARY TRANSMISSION | 1 | $5.51 | |
| 27 | 0822-011 | GEAR, REVERSE IDLE | 1 | $84.95 | |
| 28 | 0822-012 | BUSHING, REVERSE IDLE GEAR | 1 | $30.95 | |
| 29 | 0822-015 | SHAFT, REVERSE IDLE | 1 | $30.95 |
