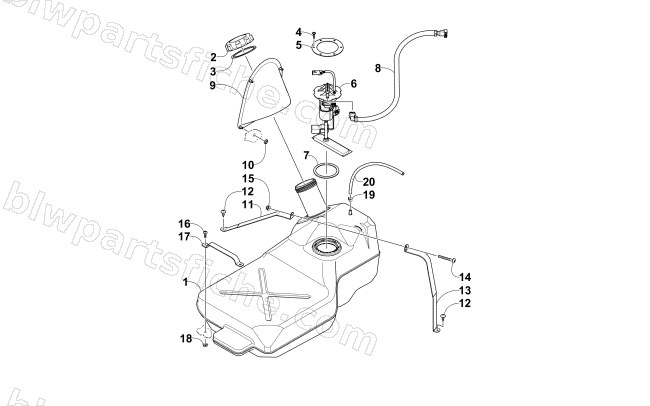

2011 Arctic Cat PROWLER 550 XT — GAS TANK ASSEMBLY
2011 PROWLER 550 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-309 | TANK,FUEL-ASSEMBLY (SERVICE PARTS) | 1 | $525.95 | |
| 2 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 4 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 5 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 6 | 0570-435 | FUEL PUMP KIT | 1 | $485.95 | |
| 7 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 8 | 0470-745 | HOSE,FUEL | 1 | $82.95 | |
| 9 | 1406-886 | INSERT,FUEL CAP | 1 | $20.63 | |
| 10 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 11 | 0470-829 | STRAP,FUEL TANK | 1 | $30.95 | |
| 12 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 13 | 0470-830 | STRAP,FUEL TANK | 1 | $30.95 | |
| 14 | 8476-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&Y | 1 | $1.50 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 17 | 0470-544 | BRACKET,FUEL TANK MOUNT | 1 | $16.49 | |
| 18 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 19 | 0423-688 | CLAMP,SNAP-10 MM | 1 | $2.33 | |
| 20 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 |
