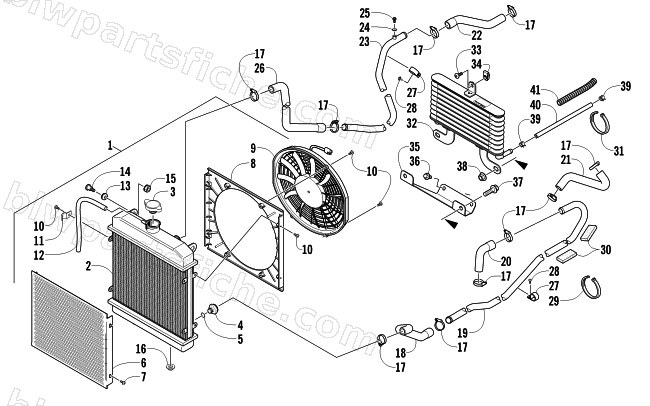

COOLING ASSEMBLY
2011 PROWLER 700s XTX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-256 | RADIATOR,ASSEMBLY-EFI | 1 | $668.95 | |
| 2 | 0413-205 | ELEMENT,RADIATOR | 1 | $445.95 | |
| 3 | 0413-255 | CAP,RADIATOR | 1 | $53.95 | |
| 4 | 0413-195 | PLUG,DRAIN-RADIATOR | 1 | $20.63 | |
| 5 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 6 | 0413-007 | SCREEN,RADIATOR | 1 | $85.95 | |
| 7 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 8 | 0413-203 | SHROUD,FAN | 1 | $114.95 | |
| 9 | 0413-123 | FAN,RADIATOR | 1 | $224.95 | |
| 10 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 11 | 0423-351 | CLIP, HOSE | 1 | $4.13 | |
| 12 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 12 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 13 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 14 | 0423-484 | BOLT,SHOULDER-9.6X9.55XM6 BLK | 1 | $2.69 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 17 | 0423-496 | CLAMP,HOSE- WORM 19-38mmX12.7mm | 1 | $2.47 | |
| 18 | 0410-094 | HOSE,COOLANT LOWER RADIATOR | 1 | $37.95 | |
| 19 | 0410-090 | PIPE,COOLANT-LOWER | 1 | $100.95 | |
| 20 | 0410-093 | HOSE,COOLANT LOWER ENGINE | 1 | $30.95 | |
| 21 | 0410-095 | HOSE,COOLANT-REAR | 1 | $30.95 | |
| 22 | 0410-207 | HOSE,COOLANT OUT | 1 | $23.39 | |
| 23 | 0510-594 | PIPE,COOLANT RETURN-ASSY | 1 | $122.95 | |
| 24 | 0423-921 | O-RING, .07W X .24ID EPDM 80 | 1 | $2.06 | |
| 25 | 3004-346 | BOLT, UNION | 1 | $4.68 | |
| 26 | 0410-092 | HOSE,COOLANT UPPER RADIATOR | 1 | $42.95 | |
| 27 | 0423-594 | CLAMP,PIPE-COOLANT | 1 | $4.13 | |
| 28 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 29 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 30 | 0406-288 | PAD,BATTERY-TOP FR | 1 | $6.34 | |
| 31 | 0623-751 | CABLE TIE,REUSABLE-('98 440 PRO) | 1 | $0.95 | |
| 32 | 0413-211 | COOLER,OIL | 1 | $357.95 | |
| 33 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 34 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 35 | 0513-040 | BRKT,MTG-OIL COOLER-LOWER-PTD | 1 | $47.95 | |
| 36 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 37 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 38 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 | |
| 39 | 0423-632 | CLAMP,HOSE #5 MICRO-GEAR SIZE 05 | 1 | $4.82 | |
| 40 | 0410-235 | HOSE,OIL-UPPER | 1 | $58.95 | |
| 40 | 0410-166 | HOSE,OIL UPPER | 1 | $90.95 | |
| 41 | 1619-453 | CONDUIT,FLEXIBLE-HIGH TEMP-.750ID X 37" | 1 | $37.95 |
