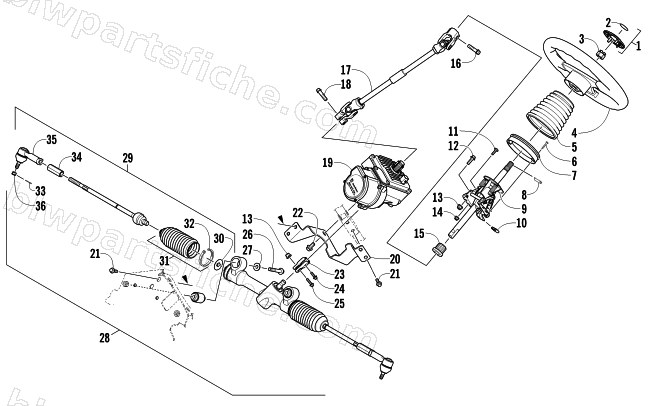

2011 Arctic Cat PROWLER 700s XTX — STEERING ASSEMBLY
2011 PROWLER 700s XTX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0505-690 | CAP,STEERING WHEEL-W/DECAL | 1 | $16.49 | |
| 2 | 1411-798 | DECAL,STEERING WHEEL | 1 | $10.97 | |
| 3 | 0423-884 | NUT,HEX-SLOTTED- M16 X 2 Z&C | 1 | $12.35 | |
| 4 | 0405-398 | WHEEL,STEERING-OVERMOLDED | 1 | $101.95 | |
| 5 | 0405-339 | BOOT,TILT STEERING-XTX | 1 | $54.95 | |
| 6 | 0423-743 | SCREW,SELF-TAP M4X0.7X25 | 1 | $0.68 | |
| 7 | 0405-258 | SUPPORT,BOOT | 1 | $12.35 | |
| 8 | 1423-045 | CLIP,STEERING WHEEL | 1 | $2.06 | |
| 9 | 0505-886 | MECHANISM, TILT (YELLOW ZINC SHAFT) | 1 | $393.95 | |
| 10 | 2406-590 | CAP,TILT LEVER | 1 | $2.06 | |
| 11 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 12 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 13 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 14 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 15 | 0505-730 | BUSHING,STEERING (3.4 T FLANGE) | 1 | $12.35 | |
| 15 | 0405-155 | BUSHING,STEERING | 1 | $10.97 | |
| 16 | 1423-047 | BOLT,PINCH (M10 X 1.25 W/ PATCH)-SILV | 1 | $13.73 | |
| 17 | 0405-379 | SHAFT, EPS LOWER STEERING-ASSY | 1 | $283.95 | |
| 18 | 1423-044 | SCREW,CAP-HFH M6X1.0X30 CL10.9 SILV | 1 | $3.16 | |
| 19 | 0505-855 | R/B 0505-913 | 1 | $2,625.95 | |
| 20 | 4506-152 | BRACKET,EPS MOUNT-PAINTED BLK | 1 | $37.95 | |
| 21 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 22 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 23 | 0405-388 | STEERING, COUPLER | 1 | $85.95 | |
| 24 | 1423-052 | SCREW,CAP-HFH M6X1.0X25 CL10.9 ORG BLK | 1 | $1.78 | |
| 25 | 1423-053 | SCREW,CAP-HFH M8X1.25X30 CL10.9 BLK | 1 | $2.61 | |
| 26 | 8408-070 | SCREW,CAP-HFH M10X1.25X70 CL8.8 Z&Y | 1 | $2.06 | |
| 27 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 28 | 0505-689 | STEERING ASSY KIT-RACK AND PINION | 1 | $573.95 | |
| 29 | 0505-719 | TIE ROD KIT,INNER-W/ ROD END | 1 | $122.95 | |
| 30 | 0405-428 | PLATE,LOCK-STEERING RACK | 1 | $3.71 | |
| 31 | 0505-745 | BOOT KIT,RACK AND PINION | 1 | $33.95 | |
| 32 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 33 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 34 | 0505-744 | NUT,JAM-HEX, KIT- Z&Y (M12 X 1.5 X 72 L) | 1 | $17.87 | |
| 35 | 0505-743 | ROD END KIT-STEERING RACK | 1 | $47.95 | |
| 36 | 0423-072 | NUT,HEX CASTLE M10-1.25 | 1 | $2.61 |
