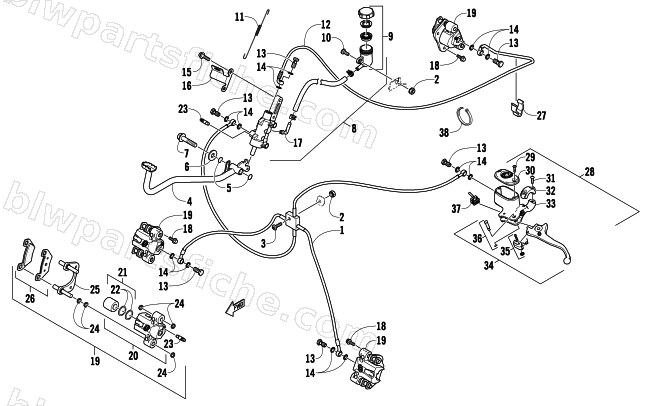

HYDRAULIC BRAKE ASSEMBLY
2011 TRV 1000s CRUISER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1502-015 | HOSE,BRAKE ASSEMBLY | 1 | $390.95 | |
| 2 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 3 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 4 | 1502-162 | LEVER,FOOT BRAKE-BLACK (H2) | 1 | $74.95 | |
| 5 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 6 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 7 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 1502-577 | DIRMC II,5/8" REMOTE RESERVOIR-ASSY | 1 | $412.95 | |
| 9 | 1502-578 | REMOTE RESERVOIR,20.24"-SUB-ASSY | 1 | $45.95 | |
| 10 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 11 | 0502-785 | SPRING,BRAKE SWITCH | 1 | $5.78 | |
| 12 | 1502-591 | BRAKELINE,39.5",45X45 BANJO,45DEG FITTIN | 1 | $150.95 | |
| 13 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 14 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 15 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 16 | 0502-840 | BRACKET,SWITCH-BLACK | 1 | $16.49 | |
| 17 | 1502-296 | HOSE ADAPTER SPOUT,90DEG-GROMMET SEAL | 1 | $24.77 | |
| 18 | 8408-821 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353 | 1 | $1.09 | |
| 19 | 1436-422 | R/B 2502-574 | 1 | $190.95 | |
| 19 | 1436-423 | R/B 2502-575 | 1 | $432.95 | |
| 20 | 1436-160 | KIT-HOUSING,PISTONS,SEALS,BLEADER-RH | 1 | $266.95 | |
| 20 | 1436-161 | KIT-HOUSING,PISTONS,SEALS,BLEADER-LH | 1 | $268.95 | |
| 21 | 0502-606 | SET,PISTONS/SEALS | 1 | $90.95 | |
| 23 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 24 | 0502-608 | GUIDE,O-RINGS-CALIPER (FC) | 1 | $30.95 | |
| 25 | 0502-605 | BRACKET,ASSEMBLY | 1 | $124.95 | |
| 26 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 27 | 1502-115 | CLIP,BRAKE HOSE | 1 | $2.61 | |
| 28 | 1502-902 | CYLINDER,MASTER BRAKE-BLK-ASSY | 1 | $324.95 | |
| 29 | 0502-566 | KIT, RESERVOIR COVER SCREWS | 1 | $6.47 | |
| 30 | 0502-868 | RESERVOIR COVER SUB-ASSEMBLY KIT | 1 | $86.95 | |
| 31 | 0502-568 | KIT, CLAMP SCREWS | 1 | $20.63 | |
| 32 | 0502-869 | CLAMP(BLACK) | 1 | $53.95 | |
| 33 | 0502-704 | KIT,REBUILD MASTER CYLINDER (HAYES BLK) | 1 | $192.95 | |
| 34 | 1502-904 | KIT,LEVER AND PARK LEVER SUB-ASSY | 1 | $118.95 | |
| 35 | 1502-905 | KIT,PARK LEVER SUB-ASSY | 1 | $20.63 | |
| 36 | 0502-580 | KIT,SNAP RING | 1 | $20.63 | |
| 37 | 0502-564 | KIT, BRAKE LIGHT SWITCH | 1 | $58.95 | |
| 38 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
