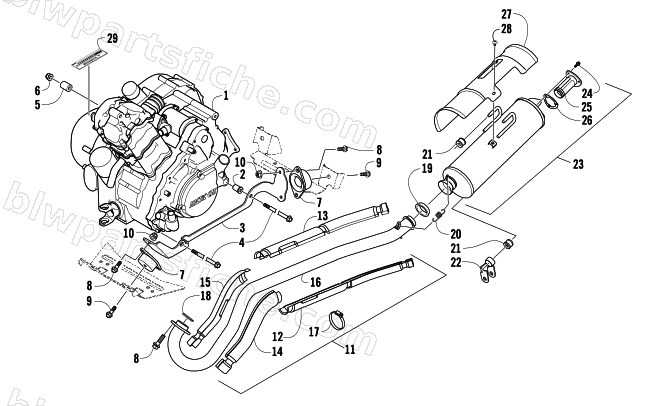

ENGINE AND EXHAUST
2011 TRV 550s H1 EFI CRUISER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0800-073 | ENGINE,A550F H1 ASSY (FIS) | 1 | $5,047.95 | |
| 2 | 0801-180 | R/B 0801-268 | 1 | $10.95 | |
| 3 | 1506-740 | BRACKET,ENGINE-RH-BLACK | 1 | $64.95 | |
| 3 | 1506-741 | BRACKET,ENGINE-LH-BLACK | 1 | $64.95 | |
| 4 | 0423-405 | SCREW,CAP-HFH M10X1.25X215 CL10.9 Z&Y | 1 | $6.34 | |
| 5 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 6 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 7 | 2406-065 | MOUNT,RUBBER-ENGINE | 1 | $66.95 | |
| 8 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 9 | 8408-012 | SCREW,CAP-HFH M10X1.25X12 CL8.8 Z&Y | 1 | $12.35 | |
| 10 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 11 | 0512-363 | PIPE,EXHAUST-ASSEMBLY | 1 | $309.95 | |
| 12 | 0412-355 | SHIELD,EXHAUST-LOWER | 1 | $42.95 | |
| 13 | 0412-354 | SHIELD,EXHAUST-UPPER | 1 | $32.95 | |
| 14 | 0412-349 | SHIELD,EXHAUST PIPE | 1 | $34.95 | |
| 15 | 0412-348 | SHIELD,EXHAUST PIPE | 1 | $48.95 | |
| 16 | 0512-362 | PIPE,EXHAUST-BLACK | 1 | $180.95 | |
| 17 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 18 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 19 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 20 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 21 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 22 | 1506-732 | CHANNEL,MUFFLER SUPPORT-BLACK | 1 | $23.39 | |
| 23 | 0512-355 | MUFFLER-PAINTED | 1 | $509.95 | |
| 24 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 25 | 0512-219 | SPARK ARRESTER-ASSEMBLY | 1 | $58.95 | |
| 26 | 0412-313 | GASKET,SPARK ARRESTER | 1 | $26.95 | |
| 27 | 0412-373 | COVER,MUFFLER | 1 | $45.95 | |
| 28 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 29 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 |
