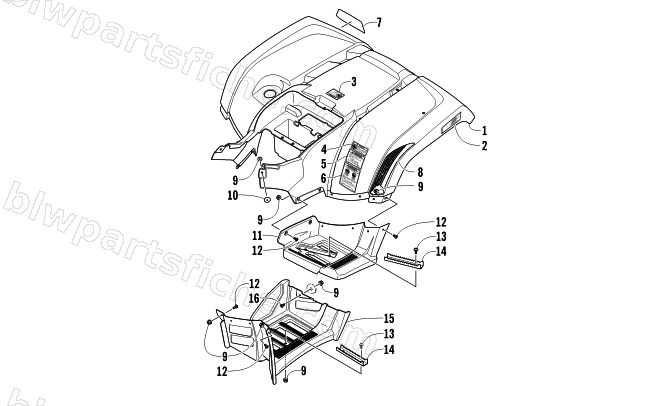

2011 Arctic Cat TRV 550s H1 EFI CRUISER — REAR BODY PANEL AND FOOTWELL ASSEMBLIES
2011 TRV 550s H1 EFI CRUISER
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-319 | FENDER,REAR N.BLUE-ASSY (TRV) | 1 | $1,162.95 | |
| 2 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 2 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 3 | 1411-251 | DECAL,WARNING SEAT-PASSENGER | 1 | $12.35 | |
| 4 | 1411-269 | DECAL,WARNING PASSENGER TRV | 1 | $24.77 | |
| 5 | 2411-138 | DECAL,WARNING-TIRE PRESSURE TRV/TBX | 1 | $10.97 | |
| 6 | 2411-257 | DECAL,WARNING-PASSENGER | 1 | $6.47 | |
| 7 | 2411-261 | DECAL,REAR-ARCTIC CAT (TRV/CRSR) | 1 | $28.95 | |
| 8 | 2411-384 | DECAL,REAR-550-RH (VIP BLUE TRV/CRSR) | 1 | $42.95 | |
| 8 | 2411-385 | DECAL,REAR-550-LH (VIP BLUE TRV/CRSR) | 1 | $42.95 | |
| 9 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 10 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 11 | 2406-042 | FOOTWELL,REAR-RH | 1 | $105.95 | |
| 11 | 2406-043 | FOOTWELL,REAR-LH | 1 | $105.95 | |
| 12 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 13 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 14 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 15 | 1506-813 | FOOTWELL,AUTO-ROUTED-RH | 1 | $105.95 | |
| 15 | 2406-471 | R/B 8506-667 | 1 | $114.95 | |
| 16 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 |
