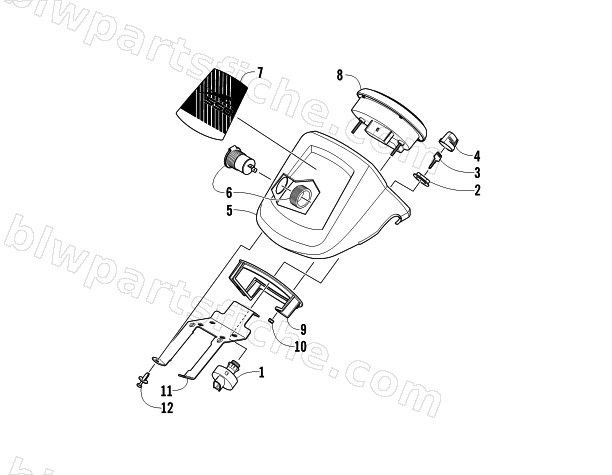

2011 Arctic Cat TRV 550s H1 EFI GT — INSTRUMENT POD ASSEMBLY
2011 TRV 550s H1 EFI GT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0430-090 | SWITCH,IGNITION-LIGHTS (09 ATV) | 1 | $66.95 | |
| 2 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 3 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 3 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 4 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 5 | 0505-691 | POD,INST-A.C.COPPER-PTD (R/B 0505-697) | 1 | $95.95 | |
| 6 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 7 | 2411-258 | DECAL,POD-550 (TRV) | 1 | $13.73 | |
| 8 | 0520-092 | GAUGE,LCD (010 550 H1 TRV PS) | 1 | $525.95 | |
| 9 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 10 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 11 | 2506-470 | BRKT,MTG GAUGE-PTD | 1 | $26.95 | |
| 12 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 |
