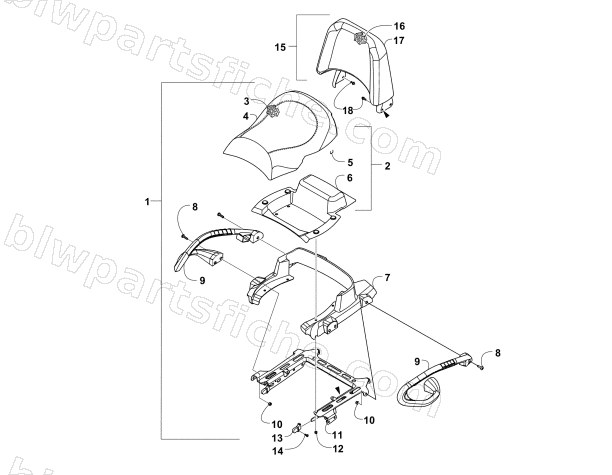

2011 Arctic Cat TRV 550s H1 EFI GT — PASSENGER SEAT AND BACKREST ASSEMBLY
2011 TRV 550s H1 EFI GT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-896 | SEAT,AUX-ASSY (H1 UH) | 1 | $369.95 | |
| 2 | 2506-064 | SEAT,AUX-SUB-ASSEMBLY | 1 | $292.95 | |
| 3 | 1506-816 | FOAM,SEAT-PASSENGER | 1 | $136.95 | |
| 4 | 1506-815 | COVER,SEAT-PASSENGER | 1 | $122.95 | |
| 5 | 0624-263 | STAPLE,S.S. 3/8"PKG OF 1,250 ARROW | 1 | $133.95 | |
| 6 | 2406-110 | BASE,SEAT-INNER | 1 | $58.95 | |
| 7 | 2406-044 | BASE,SEAT-FASCIA | 1 | $145.95 | |
| 8 | 8468-830 | SCREW,MACH-TSPNH M8X1.25X30 CL8.8 BLK | 1 | $9.59 | |
| 9 | 2406-834 | HANDHOLD,RH (SOFT GRIP) | 1 | $148.95 | |
| 9 | 2406-835 | HANDHOLD,LH (SOFT GRIP) | 1 | $148.95 | |
| 10 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 11 | 2516-040 | BRACKET,SEAT SUPPORT-ASSEMBLY | 1 | $196.95 | |
| 12 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 13 | 2406-895 | END CAP,SEAT SUPPORT | 1 | $5.92 | |
| 14 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 15 | 2516-020 | BACKREST - ASSEMBLY | 1 | $350.95 | |
| 16 | 2516-018 | FOAM,BACKREST | 1 | $169.95 | |
| 17 | 2516-141 | COVER,BACKREST | 1 | $118.95 | |
| 18 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 |
