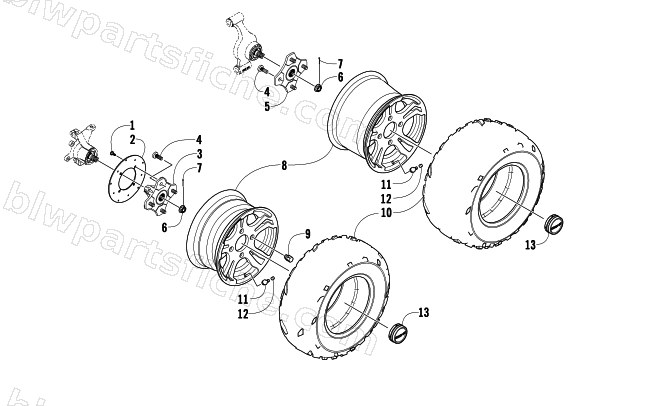

2011 Arctic Cat TRV 550s H1 EFI GT — WHEEL AND TIRE ASSEMBLY
2011 TRV 550s H1 EFI GT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-164 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 3 | 1502-462 | HUB - ASSEMBLY (W/DISC PEARCH) | 1 | $177.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 1502-464 | HUB,ASSEMBLY (W/O DISC PEARCH) | 1 | $129.95 | |
| 6 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 7 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 8 | 1402-730 | WHEEL,FRONT- ALUMINUM (12X6.0)(BLACK) | 1 | $160.95 | |
| 8 | 1402-731 | WHEEL,REAR- ALUMINUM (12X7.5)(BLACK) | 1 | $160.95 | |
| 9 | 0423-618 | NUT,LUG MOUNTING-CHROME | 1 | $3.57 | |
| 10 | 1402-894 | TIRE,DURO RED EAGLE AT (RB 2402-250) | 1 | $118.95 | |
| 10 | 1402-895 | TIRE,DURO RED EAGLE AT (RB 2402-251) | 1 | $136.95 | |
| 11 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 13 | 1402-736 | CAP, CENTER | 1 | $24.77 |
