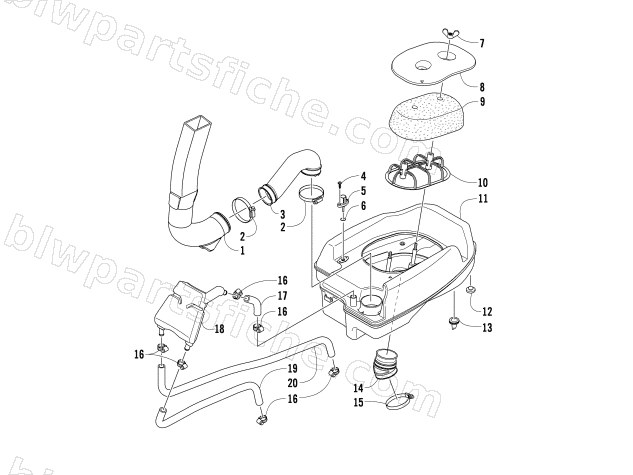

AIR INTAKE ASSEMBLY
2012 1000 MUD PRO LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-265 | DUCT,AIR-IN-41.3 | 1 | $86.95 | |
| 2 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 3 | 0470-583 | BOOT,AIR IN-AIR BOX | 1 | $58.95 | |
| 4 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 5 | 0430-055 | SENSOR,AIR TEMP | 1 | $30.95 | |
| 6 | 5507-224 | O-RING,AIR TEMP SENSOR | 1 | $6.06 | |
| 7 | 0423-716 | WINGNUT,NYLOC-M6X1.0 | 1 | $3.85 | |
| 8 | 0470-832 | LID,AIR BOX-FABRICATED | 1 | $42.95 | |
| 9 | 0470-828 | FILTER,AIR | 1 | $47.95 | |
| 10 | 0470-731 | CAGE,AIR FILTER | 1 | $49.95 | |
| 11 | 0570-221 | AIR BOX,BOTTOM & TOP-EMAWELD | 1 | $256.95 | |
| 12 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 13 | 0470-858 | VALVE,AIR CLEANER-CLOSED | 1 | $6.34 | |
| 14 | 0470-638 | BOOT,THROTTLE BODY | 1 | $20.63 | |
| 15 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 16 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 17 | 0410-198 | HOSE,OIL SEPARATOR | 1 | $4.40 | |
| 18 | 0470-718 | TANK,SEPARATOR | 1 | $64.95 | |
| 19 | 0410-196 | HOSE,CRANKCASE VENT #1 | 1 | $20.63 | |
| 20 | 0410-208 | HOSE,CRANKCASE VENT #1 (615 MM) | 1 | $20.63 |
